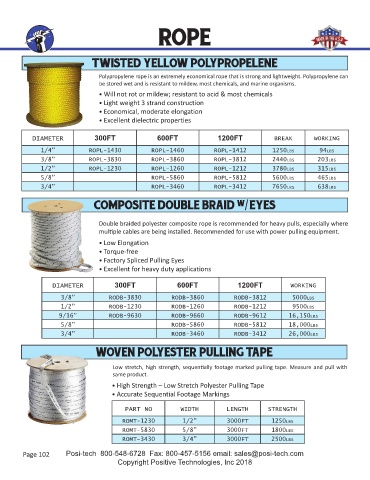

Page 102 - Catalog 26 2019

ROPE

TWISTED YELLOW POLYPROPELENE

Polypropylene rope is an extremely economical rope that is strong and lightweight. Polypropylene can
be stored wet and is resistant to mildew, most chemicals, and marine organisms.
• Will not rot or mildew; resistant to acid & most chemicals
• Light weight 3 strand construction
• Economical, moderate elongation
• Excellent dielectric properties

DIAMETER 300FT 600FT 1200FT BREAK WORKING
1/4” ROPL-1430 ROPL-1460 ROPL-1412 1250LBS 94LBS
3/8” ROPL-3830 ROPL-3860 ROPL-3812 2440LBS 203LBS
1/2” ROPL-1230 ROPL-1260 ROPL-1212 3780LBS 315LBS
5/8” ROPL-5860 ROPL-5812 5600LBS 465LBS
3/4” ROPL-3460 ROPL-3412 7650LBS 638LBS

COMPOSITE DOUBLE BRAID /EYES
C W

Double braided polyester composite rope is recommended for heavy pulls, especially where
mul ple cables are being installed. Recommended for use with power pulling equipment.
• Low Elongation
• Torque-free
• Factory Spliced Pulling Eyes
• Excellent for heavy duty applications

DIAMETER 300FT 600FT 1200FT WORKING

3/8” RODB-3830 RODB-3860 RODB-3812 5000LBS
1/2” RODB-1230 RODB-1260 RODB-1212 9500LBS
9/16” RODB-9630 RODB-9660 RODB-9612 16,150LBS
5/8” RODB-5860 RODB-5812 18,000LBS
3/4” RODB-3460 RODB-3412 26,000LBS

WOVEN POLYESTER PULLING TAPE

Low stretch, high strength, sequen ally footage marked pulling tape. Measure and pull with
same product.
• High Strength – Low Stretch Polyester Pulling Tape
• Accurate Sequential Footage Markings

PART NO WIDTH LENGTH STRENGTH
ROMT-1230 1/2” 3000FT 1250LBS
ROMT-5830 5/8” 3000FT 1800LBS
ROMT-3430 3/4” 3000FT 2500LBS
