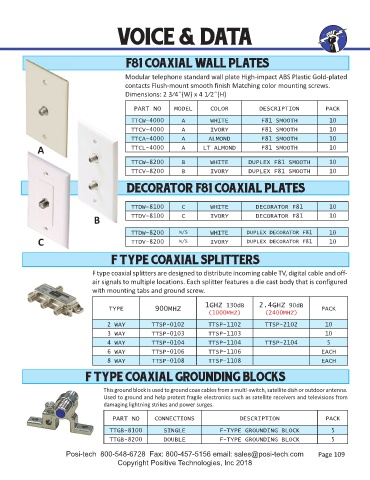

Page 109 - Catalog 26 2019

VOICE & DATA

F81 COAXIAL WALL PLATES

Modular telephone standard wall plate High-impact ABS Plastic Gold-plated
contacts Flush-mount smooth finish Matching color mounting screws.
Dimensions: 2 3⁄4˝(W) x 4 1⁄2˝(H)

PART NO MODEL COLOR DESCRIPTION PACK
TTCW-4000 A WHITE F81 SMOOTH 10
TTCV-4000 A IVORY F81 SMOOTH 10
TTCA-4000 A ALMOND F81 SMOOTH 10
A A A TTCL-4000 A LT ALMOND F81 SMOOTH 10

TTCW-8200 B WHITE DUPLEX F81 SMOOTH 10
TTCV-8200 B IVORY DUPLEX F81 SMOOTH 10

DECORATOR F81 COAXIAL PLATES

TTDW-8100 C WHITE DECORATOR F81 10
TTDV-8100 C IVORY DECORATOR F81 10
B B
TTDW-8200 N/S WHITE DUPLEX DECORATOR F81 10
C C TTDV-8200 N/S IVORY DUPLEX DECORATOR F81 10

F TYPE COAXIAL SPLITTERS

F type coaxial splitters are designed to distribute incoming cable TV, digital cable and off-
air signals to multiple locations. Each splitter features a die cast body that is configured
with mounting tabs and ground screw.

1GHZ 130dB 2.4GHZ 90dB
TYPE 900MHZ PACK
(1000MHZ) (2400MHZ)
2 WAY TTSP-0102 TTSP-1102 TTSP-2102 10
3 WAY TTSP-0103 TTSP-1103 10
4 WAY TTSP-0104 TTSP-1104 TTSP-2104 5
6 WAY TTSP-0106 TTSP-1106 EACH
8 WAY TTSP-0108 TTSP-1108 EACH

F TYPE COAXIAL GROUNDING BLOCKS

This ground block is used to ground coax cables from a multi-switch, satellite dish or outdoor antenna.
Used to ground and help protect fragile electronics such as satellite receivers and televisions from
damaging lightning strikes and power surges.

PART NO CONNECTIONS DESCRIPTION PACK
TTGB-8100 SINGLE F-TYPE GROUNDING BLOCK 5
TTGB-8200 DOUBLE F-TYPE GROUNDING BLOCK 5

Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com Page 109
Copyright Positive Technologies, Inc 2018
