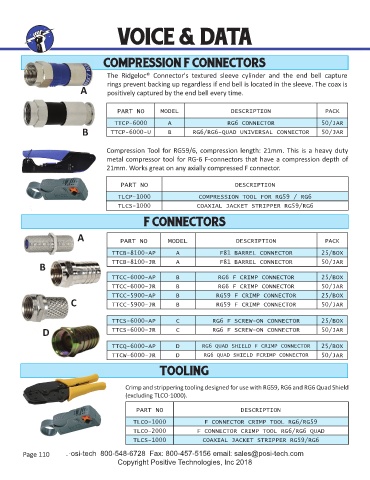

Page 110 - Catalog 26 2019

VOICE & DATA

COMPRESSION F CONNECTORS

The Ridgeloc® Connector's textured sleeve cylinder and the end bell capture
rings prevent backing up regardless if end bell is located in the sleeve. The coax is
A A positively captured by the end bell every time.

PART NO MODEL DESCRIPTION PACK

TTCP-6000 A RG6 CONNECTOR 50/JAR
B TTCP-6000-U B RG6/RG6-QUAD UNIVERSAL CONNECTOR 50/JAR

Compression Tool for RG59/6, compression length: 21mm. This is a heavy duty
metal compressor tool for RG-6 F-connectors that have a compression depth of
21mm. Works great on any axially compressed F connector.

PART NO DESCRIPTION
TLCP-1000 COMPRESSION TOOL FOR RG59 / RG6
TLCS-1000 COAXIAL JACKET STRIPPER RG59/RG6

F CONNECTORS

A PART NO MODEL DESCRIPTION PACK

TTCB-8100-AP A F81 BARREL CONNECTOR 25/BOX
TTCB-8100-JR A F81 BARREL CONNECTOR 50/JAR
B
TTCC-6000-AP B RG6 F CRIMP CONNECTOR 25/BOX
TTCC-6000-JR B RG6 F CRIMP CONNECTOR 50/JAR
TTCC-5900-AP B RG59 F CRIMP CONNECTOR 25/BOX
C TTCC-5900-JR B RG59 F CRIMP CONNECTOR 50/JAR

TTCS-6000-AP C RG6 F SCREW-ON CONNECTOR 25/BOX
D TTCS-6000-JR C RG6 F SCREW-ON CONNECTOR 50/JAR

TTCQ-6000-AP D RG6 QUAD SHIELD F CRIMP CONNECTOR 25/BOX
TTCW-6000-JR D RG6 QUAD SHIELD FCRIMP CONNECTOR 50/JAR

TOOLING

Crimp and strippering tooling designed for use with RG59, RG6 and RG6 Quad Shield
(excluding TLCO-1000).

PART NO DESCRIPTION
TLCO-1000 F CONNECTOR CRIMP TOOL RG6/RG59
TLCO-2000 F CONNECTOR CRIMP TOOL RG6/RG6 QUAD
TLCS-1000 COAXIAL JACKET STRIPPER RG59/RG6

Page 110 Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com
Copyright Positive Technologies, Inc 2018
