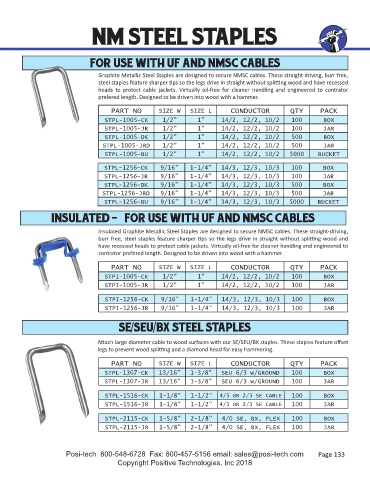

Page 133 - Catalog 26 2019

NM STEEL STAPLES

FOR USE WITH UF AND NMSC CABLES

Graphite Metallic Steel Staples are designed to secure NMSC cables. These straight-driving, burr free,
steel staples feature sharper ps so the legs drive in straight without spli ng wood and have recessed
heads to protect cable jackets. Virtually oil-free for cleaner handling and engineered to contrator
prefered length. Designed to be driven into wood with a hammer.
PART NO SIZE W SIZE L CONDUCTOR QTY PACK
STPL-1005-CK 1/2” 1” 14/2, 12/2, 10/2 100 BOX
STPL-1005-JR 1/2” 1” 14/2, 12/2, 10/2 100 JAR
STPL-1005-DK 1/2” 1” 14/2, 12/2, 10/2 500 BOX
STPL-1005-JRD 1/2” 1” 14/2, 12/2, 10/2 500 JAR
STPL-1005-BU 1/2” 1” 14/2, 12/2, 10/2 5000 BUCKET

STPL-1256-CK 9/16” 1-1/4” 14/3, 12/3, 10/3 100 BOX
STPL-1256-JR 9/16” 1-1/4” 14/3, 12/3, 10/3 100 JAR
STPL-1256-DK 9/16” 1-1/4” 14/3, 12/3, 10/3 500 BOX
STPL-1256-JRD 9/16” 1-1/4” 14/3, 12/3, 10/3 500 JAR
STPL-1256-BU 9/16” 1-1/4” 14/3, 12/3, 10/3 5000 BUCKET

INSULATED - FOR USE WITH UF AND NMSC CABLES

Insulated Graphite Metallic Steel Staples are designed to secure NMSC cables. These straight-driving,
burr free, steel staples feature sharper ps so the legs drive in straight without spli ng wood and
have recessed heads to protect cable jackets. Virtually oil-free for cleaner handling and engineered to
contrator prefered length. Designed to be driven into wood with a hammer.
PART NO SIZE W SIZE L CONDUCTOR QTY PACK
STPI-1005-CK 1/2” 1” 14/2, 12/2, 10/2 100 BOX
STPI-1005-JR 1/2” 1” 14/2, 12/2, 10/2 100 JAR

STPI-1256-CK 9/16” 1-1/4” 14/3, 12/3, 10/3 100 BOX
STPI-1256-JR 9/16” 1-1/4” 14/3, 12/3, 10/3 100 JAR

SE/SEU/BX STEEL STAPLES

A ach large diameter cable to wood surfaces with our SE/SEU/BX staples. These staples feature off set
legs to prevent wood spli ng and a diamond head for easy hammering.
PART NO SIZE W SIZE L CONDUCTOR QTY PACK
STPL-1307-CK 13/16” 1-3/8” SEU 6/3 w/GROUND 100 BOX
STPL-1307-JR 13/16” 1-3/8” SEU 6/3 w/GROUND 100 JAR

STPL-1516-CK 1-1/8” 1-1/2” 4/3 OR 2/3 SE CABLE 100 BOX
STPL-1516-JR 1-1/8” 1-1/2” 4/3 OR 2/3 SE CABLE 100 JAR

STPL-2115-CK 1-5/8” 2-1/8” 4/0 SE, BX, FLEX 100 BOX
STPL-2115-JR 1-5/8” 2-1/8” 4/0 SE, BX, FLEX 100 JAR

Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com Page 133
Copyright Positive Technologies, Inc 2018
