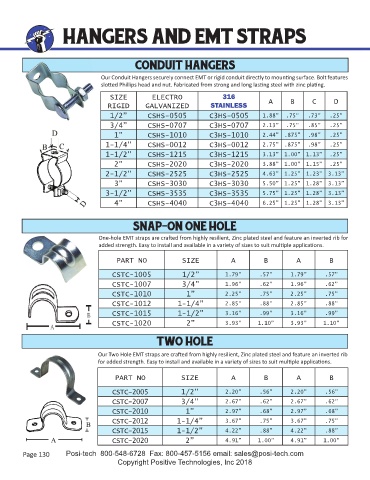

Page 130 - Catalog 26 2019

HANGERS AND EMT STRAPS

CONDUIT HANGERS

Our Conduit Hangers securely connect EMT or rigid conduit directly to moun ng surface. Bolt features
slo ed Phillips head and nut. Fabricated from strong and long las ng steel with zinc pla ng.
SIZE ELECTRO 316
RIGID GALVANIZED STAINLESS A B C D
1/2” CSHS-0505 C3HS-0505 1.88” .75” .73” .25”
3/4” CSHS-0707 C3HS-0707 2.13” .75” .85” .25”
1” CSHS-1010 C3HS-1010 2.44” .875” .98” .25”
1-1/4” CSHS-0012 C3HS-0012 2.75” .875” .98” .25”
1-1/2” CSHS-1215 C3HS-1215 3.13” 1.00” 1.13” .25”
2” CSHS-2020 C3HS-2020 3.88” 1.00” 1.15” .25”
2-1/2” CSHS-2525 C3HS-2525 4.63” 1.25” 1.23” 3.13”
3” CSHS-3030 C3HS-3030 5.50” 1.25” 1.28” 3.13”
3-1/2” CSHS-3535 C3HS-3535 5.75” 1.25” 1.28” 3.13”
4” CSHS-4040 C3HS-4040 6.25” 1.25” 1.28” 3.13”

SNAP-ON ONE HOLE
One-hole EMT straps are cra ed from highly resilient, Zinc plated steel and feature an inverted rib for
added strength. Easy to install and available in a variety of sizes to suit mul ple applica ons.

PART NO SIZE A B A B

CSTC-1005 1/2” 1.79” .57” 1.79” .57”
CSTC-1007 3/4” 1.96” .62” 1.96” .62”
CSTC-1010 1” 2.25” .75” 2.25” .75”
CSTC-1012 1-1/4” 2.85” .88” 2.85” .88”
CSTC-1015 1-1/2” 3.16” .99” 3.16” .99”
CSTC-1020 2” 3.93” 1.10” 3.93” 1.10”

TWO HOLE
Our Two Hole EMT straps are cra ed from highly resilient, Zinc plated steel and feature an inverted rib
for added strength. Easy to install and available in a variety of sizes to suit mul ple applica ons.

PART NO SIZE A B A B

CSTC-2005 1/2” 2.20” .56” 2.20” .56”
CSTC-2007 3/4” 2.67” .62” 2.67” .62”
CSTC-2010 1” 2.97” .68” 2.97” .68”
CSTC-2012 1-1/4” 3.67” .75” 3.67” .75”
CSTC-2015 1-1/2” 4.22” .88” 4.22” .88”
CSTC-2020 2” 4.91” 1.00” 4.91” 1.00”

Page 130 Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com
Copyright Positive Technologies, Inc 2018
