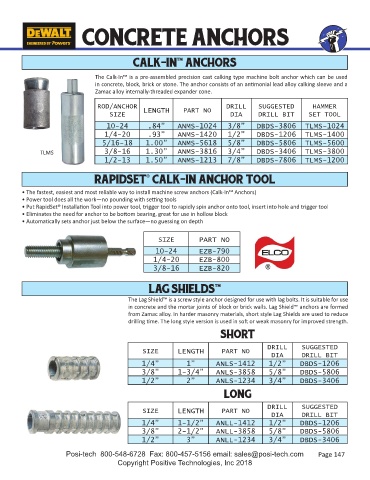

Page 147 - Catalog 26 2019

CONCRETE ANCHORS

CALK-IN™ ANCHORS

The Calk-In™ is a pre-assembled precision cast calking type machine bolt anchor which can be used
in concrete, block, brick or stone. The anchor consists of an an monial lead alloy calking sleeve and a
Zamac alloy internally-threaded expander cone.

ROD/ANCHOR DRILL SUGGESTED HAMMER
SIZE LENGTH PART NO DIA DRILL BIT SET TOOL
10-24 .84” ANMS-1024 3/8” DBDS-3806 TLMS-1024
1/4-20 .93” ANMS-1420 1/2” DBDS-1206 TLMS-1400
5/16-18 1.00” ANMS-5618 5/8” DBDS-5806 TLMS-5600
TLMS 3/8-16 1.30” ANMS-3816 3/4” DBDS-3406 TLMS-3800
1/2-13 1.50” ANMS-1213 7/8” DBDS-7806 TLMS-1200

RAPIDSET® CALK-IN ANCHOR TOOL

• The fastest, easiest and most reliable way to install machine screw anchors (Calk-In™ Anchors)
• Power tool does all the work—no pounding with se ng tools
• Put RapidSet® Installa on Tool into power tool, trigger tool to rapidly spin anchor onto tool, insert into hole and trigger tool
• Eliminates the need for anchor to be bo om bearing, great for use in hollow block
• Automa cally sets anchor just below the surface—no guessing on depth

SIZE PART NO
10-24 EZB-790
1/4-20 EZB-800
3/8-16 EZB-820

LAG SHIELDS™
The Lag Shield™ is a screw style anchor designed for use with lag bolts. It is suitable for use
in concrete and the mortar joints of block or brick walls. Lag Shield™ anchors are formed
from Zamac alloy. In harder masonry materials, short style Lag Shields are used to reduce
drilling me. The long style version is used in so or weak masonry for improved strength.
SHORT

DRILL SUGGESTED
SIZE LENGTH PART NO
DIA DRILL BIT
1/4” 1” ANLS-1412 1/2” DBDS-1206
3/8” 1-3/4” ANLS-3858 5/8” DBDS-5806
1/2” 2” ANLS-1234 3/4” DBDS-3406
LONG

DRILL SUGGESTED
SIZE LENGTH PART NO
DIA DRILL BIT
1/4” 1-1/2” ANLL-1412 1/2” DBDS-1206
3/8” 2-1/2” ANLL-3858 5/8” DBDS-5806
1/2” 3” ANLL-1234 3/4” DBDS-3406

Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.comi tech 800-5 Page 147
Copyright Positive Technologies, Inc 2018
