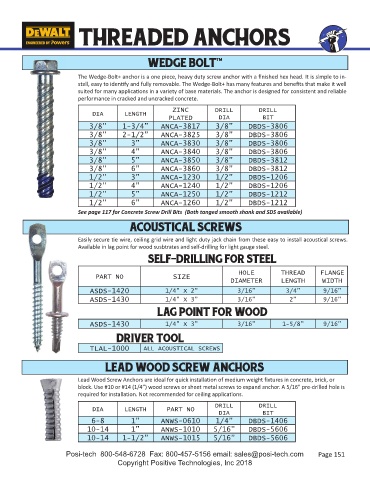

Page 151 - Catalog 26 2019

THREADED ANCHORS

WEDGE BOLT™

The Wedge-Bolt+ anchor is a one piece, heavy duty screw anchor with a fi nished hex head. It is simple to in-
stall, easy to iden fy and fully removable. The Wedge-Bolt+ has many features and benefi ts that make it well
suited for many applica ons in a variety of base materials. The anchor is designed for consistent and reliable
performance in cracked and uncracked concrete.
ZINC DRILL DRILL
DIA LENGTH
PLATED DIA BIT
3/8” 1-3/4” ANCA-3817 3/8” DBDS-3806
3/8” 2-1/2” ANCA-3825 3/8” DBDS-3806
3/8” 3” ANCA-3830 3/8” DBDS-3806
3/8” 4” ANCA-3840 3/8” DBDS-3806
3/8” 5” ANCA-3850 3/8” DBDS-3812
3/8” 6” ANCA-3860 3/8” DBDS-3812
1/2” 3” ANCA-1230 1/2” DBDS-1206
1/2” 4” ANCA-1240 1/2” DBDS-1206
1/2” 5” ANCA-1250 1/2” DBDS-1212
1/2” 6” ANCA-1260 1/2” DBDS-1212
See page 117 for Concrete Screw Drill Bits (Both tanged smooth shank and SDS available)

ACOUSTICAL SCREWS

Easily secure e wire, ceiling grid wire and light duty jack chain from these easy to install acous cal screws.
Available in lag point for wood susbtrates and self-drilling for light gauge steel.
SELF-DRILLING FOR STEEL

HOLE THREAD FLANGE
PART NO SIZE
DIAMETER LENGTH WIDTH
ASDS-1420 1/4” X 2” 3/16” 3/4” 9/16”
ASDS-1430 1/4” X 3” 3/16” 2” 9/16”

LAG POINT FOR WOOD
ASDS-1430 1/4” X 3” 3/16” 1-5/8” 9/16”

DRIVER TOOL
TLAL-1000 ALL ACOUSTICAL SCREWS

LEAD WOOD SCREW ANCHORS

Lead Wood Screw Anchors are ideal for quick installation of medium weight fixtures in concrete, brick, or
block. Use #10 or #14 (1/4”) wood screws or sheet metal screws to expand anchor. A 5/16” pre-drilled hole is
required for installation. Not recommended for ceiling applications.
DRILL DRILL
DIA LENGTH PART NO
DIA BIT
6-8 1” ANWS-0610 1/4” DBDS-1406
10-14 1” ANWS-1010 5/16” DBDS-5606
10-14 1-1/2” ANWS-1015 5/16” DBDS-5606

Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com Page 151
Copyright Positive Technologies, Inc 2018
