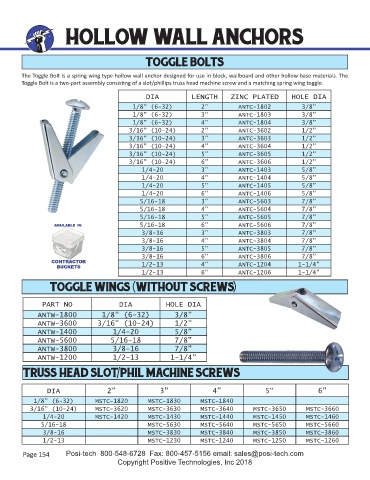

Page 154 - Catalog 26 2019

HOLLOW WALL ANCHORS

TOGGLE BOLTS

The Toggle Bolt is a spring wing type hollow wall anchor designed for use in block, wallboard and other hollow base materials. The
Toggle Bolt is a two-part assembly consis ng of a slot/phillips truss head machine screw and a matching spring wing toggle.

DIA LENGTH ZINC PLATED HOLE DIA

1/8” (6-32) 2” ANTC-1802 3/8”
1/8” (6-32) 3” ANTC-1803 3/8”
1/8” (6-32) 4” ANTC-1804 3/8”
3/16” (10-24) 2” ANTC-3602 1/2”
3/16” (10-24) 3” ANTC-3603 1/2”
3/16” (10-24) 4” ANTC-3604 1/2”
3/16” (10-24) 5” ANTC-3605 1/2”
3/16” (10-24) 6” ANTC-3606 1/2”
1/4-20 3” ANTC-1403 5/8”
1/4-20 4” ANTC-1404 5/8”
1/4-20 5” ANTC-1405 5/8”
1/4-20 6” ANTC-1406 5/8”
5/16-18 3” ANTC-5603 7/8”
5/16-18 4” ANTC-5604 7/8”
5/16-18 5” ANTC-5605 7/8”
5/16-18 6” ANTC-5606 7/8”
3/8-16 3” ANTC-3803 7/8”
3/8-16 4” ANTC-3804 7/8”
3/8-16 5” ANTC-3805 7/8”
3/8-16 6” ANTC-3806 7/8”
1/2-13 4” ANTC-1204 1-1/4”
1/2-13 6” ANTC-1206 1-1/4”
TOGGLE WINGS (WITHOUT SCREWS)

PART NO DIA HOLE DIA
ANTW-1800 1/8” (6-32) 3/8”
ANTW-3600 3/16” (10-24) 1/2”
ANTW-1400 1/4-20 5/8”
ANTW-5600 5/16-18 7/8”
ANTW-3800 3/8-16 7/8”
ANTW-1200 1/2-13 1-1/4”

TRUSS HEAD SLOT/PHIL MACHINE SCREWS

DIA 2” 3” 4” 5“ 6”
1/8” (6-32) MSTC-1820 MSTC-1830 MSTC-1840
3/16” (10-24) MSTC-3620 MSTC-3630 MSTC-3640 MSTC-3650 MSTC-3660
1/4-20 MSTC-1420 MSTC-1430 MSTC-1440 MSTC-1450 MSTC-1460
5/16-18 MSTC-5630 MSTC-5640 MSTC-5650 MSTC-5660
3/8-16 MSTC-3830 MSTC-3840 MSTC-3850 MSTC-3860
1/2-13 MSTC-1230 MSTC-1240 MSTC-1250 MSTC-1260
