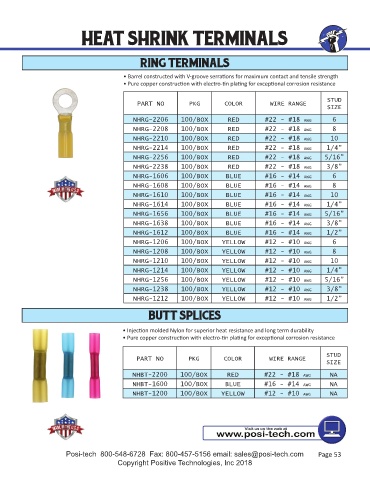

HEAT SHRINK TERMINALS
RING TERMINALS
• Barrel constructed with V-groove serra ons for maximum contact and tensile strength
• Pure copper construc on with electro- n pla ng for excep onal corrosion resistance
STUD
PART NO PKG COLOR WIRE RANGE
SIZE
NHRG-2206 100/BOX RED #22 - #18 AWG 6
NHRG-2208 100/BOX RED #22 - #18 AWG 8
NHRG-2210 100/BOX RED #22 - #18 AWG 10
NHRG-2214 100/BOX RED #22 - #18 AWG 1/4”
NHRG-2256 100/BOX RED #22 - #18 AWG 5/16”
NHRG-2238 100/BOX RED #22 - #18 AWG 3/8”
NHRG-1606 100/BOX BLUE #16 - #14 AWG 6
NHRG-1608 100/BOX BLUE #16 - #14 AWG 8
NHRG-1610 100/BOX BLUE #16 - #14 AWG 10
NHRG-1614 100/BOX BLUE #16 - #14 AWG 1/4”
NHRG-1656 100/BOX BLUE #16 - #14 AWG 5/16”
NHRG-1638 100/BOX BLUE #16 - #14 AWG 3/8”
NHRG-1612 100/BOX BLUE #16 - #14 AWG 1/2”
NHRG-1206 100/BOX YELLOW #12 - #10 AWG 6
NHRG-1208 100/BOX YELLOW #12 - #10 AWG 8
NHRG-1210 100/BOX YELLOW #12 - #10 AWG 10
NHRG-1214 100/BOX YELLOW #12 - #10 AWG 1/4”
NHRG-1256 100/BOX YELLOW #12 - #10 AWG 5/16”
NHRG-1238 100/BOX YELLOW #12 - #10 AWG 3/8”
NHRG-1212 100/BOX YELLOW #12 - #10 AWG 1/2”
BUTT SPLICES
• Injec on molded Nylon for superior heat resistance and long term durability
• Pure copper construc on with electro- n pla ng for excep onal corrosion resistance
STUD
PART NO PKG COLOR WIRE RANGE
SIZE
NHBT-2200 100/BOX RED #22 - #18 AWG NA
NHBT-1600 100/BOX BLUE #16 - #14 AWG NA
NHBT-1200 100/BOX YELLOW #12 - #10 AWG NA
