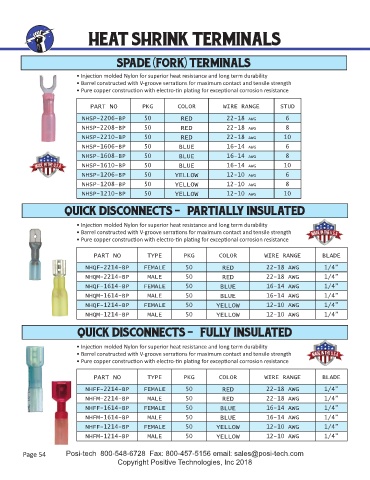

Page 54 - Catalog 26 2019
P. 54
HEAT SHRINK TERMINALS
SPADE (FORK) TERMINALS
• Injec on molded Nylon for superior heat resistance and long term durability
• Barrel constructed with V-groove serra ons for maximum contact and tensile strength
• Pure copper construc on with electro- n pla ng for excep onal corrosion resistance
PART NO PKG COLOR WIRE RANGE STUD
NHSP-2206-BP 50 RED 22-18 AWG 6
NHSP-2208-BP 50 RED 22-18 AWG 8
NHSP-2210-BP 50 RED 22-18 AWG 10
NHSP-1606-BP 50 BLUE 16-14 AWG 6
NHSP-1608-BP 50 BLUE 16-14 AWG 8
NHSP-1610-BP 50 BLUE 16-14 AWG 10
NHSP-1206-BP 50 YELLOW 12-10 AWG 6
NHSP-1208-BP 50 YELLOW 12-10 AWG 8
NHSP-1210-BP 50 YELLOW 12-10 AWG 10
QUICK DISCONNECTS - PARTIALLY INSULATED
• Injec on molded Nylon for superior heat resistance and long term durability
• Barrel constructed with V-groove serra ons for maximum contact and tensile strength
• Pure copper construc on with electro- n pla ng for excep onal corrosion resistance
PART NO TYPE PKG COLOR WIRE RANGE BLADE
NHQF-2214-BP FEMALE 50 RED 22-18 AWG 1/4”
NHQM-2214-BP MALE 50 RED 22-18 AWG 1/4”
NHQF-1614-BP FEMALE 50 BLUE 16-14 AWG 1/4”
NHQM-1614-BP MALE 50 BLUE 16-14 AWG 1/4”
NHQF-1214-BP FEMALE 50 YELLOW 12-10 AWG 1/4”
NHQM-1214-BP MALE 50 YELLOW 12-10 AWG 1/4”
QUICK DISCONNECTS - FULLY INSULATED
• Injec on molded Nylon for superior heat resistance and long term durability
• Barrel constructed with V-groove serra ons for maximum contact and tensile strength
• Pure copper construc on with electro- n pla ng for excep onal corrosion resistance
PART NO TYPE PKG COLOR WIRE RANGE BLADE
NHFF-2214-BP FEMALE 50 RED 22-18 AWG 1/4”
NHFM-2214-BP MALE 50 RED 22-18 AWG 1/4”
NHFF-1614-BP FEMALE 50 BLUE 16-14 AWG 1/4”
NHFM-1614-BP MALE 50 BLUE 16-14 AWG 1/4”
NHFF-1214-BP FEMALE 50 YELLOW 12-10 AWG 1/4”
NHFM-1214-BP MALE 50 YELLOW 12-10 AWG 1/4”
