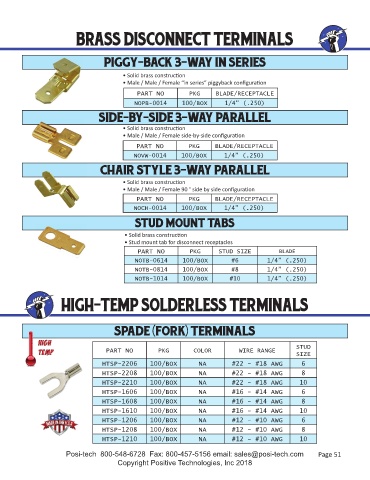

Page 51 - Catalog 26 2019

BRASS DISCONNECT TERMINALS

PIGGY-BACK 3-WAY IN SERIES

• Solid brass construc on
• Male / Male / Female “in series” piggyback confi gura on

PART NO PKG BLADE/RECEPTACLE
NOPB-0014 100/BOX 1/4” (.250)
SIDE-BY-SIDE 3-WAY PARALLEL

• Solid brass construc on
• Male / Male / Female side-by-side confi gura on

PART NO PKG BLADE/RECEPTACLE
NOVW-0014 100/BOX 1/4” (.250)
CHAIR STYLE 3-WAY PARALLEL

• Solid brass construc on
• Male / Male / Female 90 ° side by side confi gura on
PART NO PKG BLADE/RECEPTACLE
NOCH-0014 100/BOX 1/4” (.250)

STUD MOUNT TABS

• Solid brass construc on
• Stud mount tab for disconnect receptacles
PART NO PKG STUD SIZE BLADE
NOTB-0614 100/BOX #6 1/4” (.250)
NOTB-0814 100/BOX #8 1/4” (.250)
NOTB-1014 100/BOX #10 1/4” (.250)

HIGH-TEMP SOLDERLESS TERMINALS

SPADE (FORK) TERMINALS

STUD
PART NO PKG COLOR WIRE RANGE
SIZE
HTSP-2206 100/BOX NA #22 - #18 AWG 6
HTSP-2208 100/BOX NA #22 - #18 AWG 8
HTSP-2210 100/BOX NA #22 - #18 AWG 10
HTSP-1606 100/BOX NA #16 - #14 AWG 6
HTSP-1608 100/BOX NA #16 - #14 AWG 8
HTSP-1610 100/BOX NA #16 - #14 AWG 10
HTSP-1206 100/BOX NA #12 - #10 AWG 6
HTSP-1208 100/BOX NA #12 - #10 AWG 8
HTSP-1210 100/BOX NA #12 - #10 AWG 10

Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com Page 51
Copyright Positive Technologies, Inc 2018
