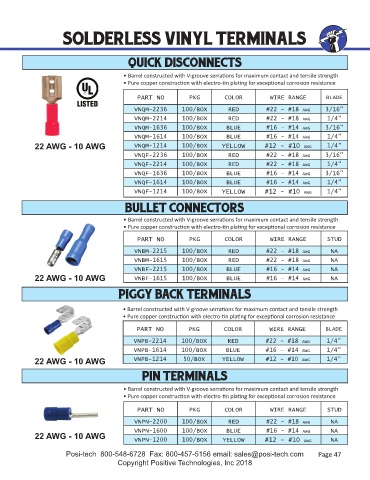

Page 47 - Catalog 26 2019
P. 47
SOLDERLESS VINYL TERMINALS
QUICK DISCONNECTS
• Barrel constructed with V-groove serra ons for maximum contact and tensile strength
• Pure copper construc on with electro- n pla ng for excep onal corrosion resistance
PART NO PKG COLOR WIRE RANGE BLADE
VNQM-2236 100/BOX RED #22 - #18 AWG 3/16”
VNQM-2214 100/BOX RED #22 - #18 AWG 1/4”
VNQM-1636 100/BOX BLUE #16 - #14 AWG 3/16”
VNQM-1614 100/BOX BLUE #16 - #14 AWG 1/4”
22 AWG - 10 AWG VNQM-1214 100/BOX YELLOW #12 - #10 AWG 1/4”
VNQF-2236 100/BOX RED #22 - #18 AWG 3/16”
VNQF-2214 100/BOX RED #22 - #18 AWG 1/4”
VNQF-1636 100/BOX BLUE #16 - #14 AWG 3/16”
VNQF-1614 100/BOX BLUE #16 - #14 AWG 1/4”
VNQF-1214 100/BOX YELLOW #12 - #10 AWG 1/4”
BULLET CONNECTORS
• Barrel constructed with V-groove serra ons for maximum contact and tensile strength
• Pure copper construc on with electro- n pla ng for excep onal corrosion resistance
PART NO PKG COLOR WIRE RANGE STUD
VNBM-2215 100/BOX RED #22 - #18 AWG NA
VNBM-1615 100/BOX RED #22 - #18 AWG NA
VNBF-2215 100/BOX BLUE #16 - #14 AWG NA
22 AWG - 10 AWG VNBF-1615 100/BOX BLUE #16 - #14 AWG NA
PIGGY BACK TERMINALS
• Barrel constructed with V-groove serra ons for maximum contact and tensile strength
• Pure copper construc on with electro- n pla ng for excep onal corrosion resistance
PART NO PKG COLOR WIRE RANGE BLADE
VNPB-2214 100/BOX RED #22 - #18 AWG 1/4”
VNPB-1614 100/BOX BLUE #16 - #14 AWG 1/4”
22 AWG - 10 AWG VNPB-1214 50/BOX YELLOW #12 - #10 AWG 1/4”
PIN TERMINALS
• Barrel constructed with V-groove serra ons for maximum contact and tensile strength
• Pure copper construc on with electro- n pla ng for excep onal corrosion resistance
PART NO PKG COLOR WIRE RANGE STUD
VNPN-2200 100/BOX RED #22 - #18 AWG NA
VNPN-1600 100/BOX BLUE #16 - #14 AWG NA
22 AWG - 10 AWG
VNPN-1200 100/BOX YELLOW #12 - #10 AWG NA
Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com Page 47
Copyright Positive Technologies, Inc 2018
