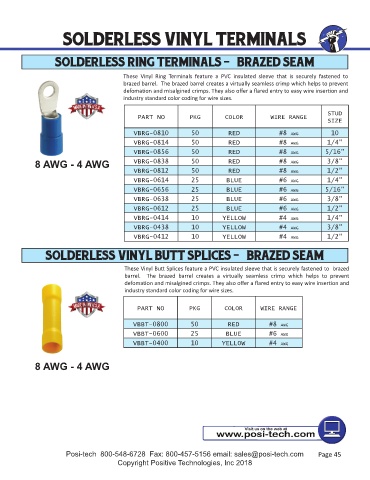

SOLDERLESS VINYL TERMINALS

SOLDERLESS RING TERMINALS - BRAZED SEAM

These Vinyl Ring Terminals feature a PVC insulated sleeve that is securely fastened to
brazed barrel. The brazed barrel creates a virtually seamless crimp which helps to prevent
defoma on and misalgined crimps. They also oﬀ er a ﬂ ared entry to easy wire inser on and
industry standard color coding for wire sizes.

STUD
PART NO PKG COLOR WIRE RANGE
SIZE
VBRG-0810 50 RED #8 AWG 10
VBRG-0814 50 RED #8 AWG 1/4”
VBRG-0856 50 RED #8 AWG 5/16”
8 AWG - 4 AWG VBRG-0838 50 RED #8 AWG 3/8”
VBRG-0812 50 RED #8 AWG 1/2”
VBRG-0614 25 BLUE #6 AWG 1/4”
VBRG-0656 25 BLUE #6 AWG 5/16”
VBRG-0638 25 BLUE #6 AWG 3/8”
VBRG-0612 25 BLUE #6 AWG 1/2”
VBRG-0414 10 YELLOW #4 AWG 1/4”
VBRG-0438 10 YELLOW #4 AWG 3/8”
VBRG-0412 10 YELLOW #4 AWG 1/2”

SOLDERLESS VINYL BUTT SPLICES - BRAZED SEAM

These Vinyl Bu Splices feature a PVC insulated sleeve that is securely fastened to brazed
barrel. The brazed barrel creates a virtually seamless crimp which helps to prevent
defoma on and misalgined crimps. They also oﬀ er a ﬂ ared entry to easy wire inser on and
industry standard color coding for wire sizes.

PART NO PKG COLOR WIRE RANGE

VBBT-0800 50 RED #8 AWG
VBBT-0600 25 BLUE #6 AWG
VBBT-0400 10 YELLOW #4 AWG

8 AWG - 4 AWG
