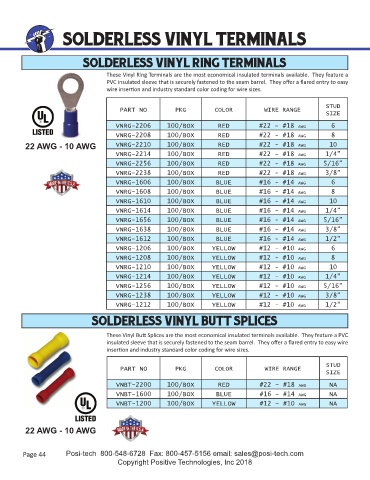

Page 44 - Catalog 26 2019

P. 44

SOLDERLESS VINYL TERMINALS

SOLDERLESS VINYL RING TERMINALS

These Vinyl Ring Terminals are the most economical insulated terminals available. They feature a
PVC insulated sleeve that is securely fastened to the seam barrel. They oﬀ er a ﬂ ared entry to easy
wire inser on and industry standard color coding for wire sizes.

STUD
PART NO PKG COLOR WIRE RANGE
SIZE
VNRG-2206 100/BOX RED #22 - #18 AWG 6
VNRG-2208 100/BOX RED #22 - #18 AWG 8
22 AWG - 10 AWG VNRG-2210 100/BOX RED #22 - #18 AWG 10
VNRG-2214 100/BOX RED #22 - #18 AWG 1/4”
VNRG-2256 100/BOX RED #22 - #18 AWG 5/16”
VNRG-2238 100/BOX RED #22 - #18 AWG 3/8”
VNRG-1606 100/BOX BLUE #16 - #14 AWG 6
VNRG-1608 100/BOX BLUE #16 - #14 AWG 8
VNRG-1610 100/BOX BLUE #16 - #14 AWG 10
VNRG-1614 100/BOX BLUE #16 - #14 AWG 1/4”
VNRG-1656 100/BOX BLUE #16 - #14 AWG 5/16”
VNRG-1638 100/BOX BLUE #16 - #14 AWG 3/8”
VNRG-1612 100/BOX BLUE #16 - #14 AWG 1/2”
VNRG-1206 100/BOX YELLOW #12 - #10 AWG 6
VNRG-1208 100/BOX YELLOW #12 - #10 AWG 8
VNRG-1210 100/BOX YELLOW #12 - #10 AWG 10
VNRG-1214 100/BOX YELLOW #12 - #10 AWG 1/4”
VNRG-1256 100/BOX YELLOW #12 - #10 AWG 5/16”
VNRG-1238 100/BOX YELLOW #12 - #10 AWG 3/8”
VNRG-1212 100/BOX YELLOW #12 - #10 AWG 1/2”

SOLDERLESS VINYL BUTT SPLICES

These Vinyl Bu Splices are the most economical insulated terminals available. They feature a PVC
insulated sleeve that is securely fastened to the seam barrel. They oﬀ er a ﬂ ared entry to easy wire
inser on and industry standard color coding for wire sizes.

STUD
PART NO PKG COLOR WIRE RANGE
SIZE
VNBT-2200 100/BOX RED #22 - #18 AWG NA
VNBT-1600 100/BOX BLUE #16 - #14 AWG NA
VNBT-1200 100/BOX YELLOW #12 - #10 AWG NA

22 AWG - 10 AWG
