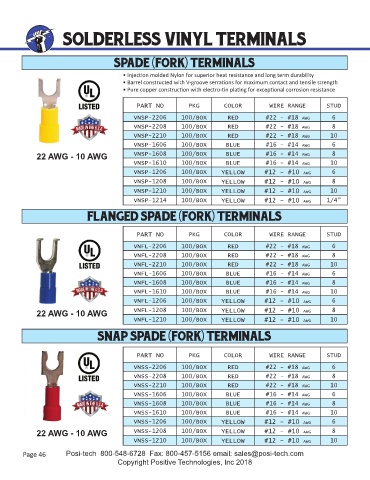

Page 46 - Catalog 26 2019
P. 46
SOLDERLESS VINYL TERMINALS
SPADE (FORK) TERMINALS
• Injec on molded Nylon for superior heat resistance and long term durability
• Barrel constructed with V-groove serra ons for maximum contact and tensile strength
• Pure copper construc on with electro- n pla ng for excep onal corrosion resistance
PART NO PKG COLOR WIRE RANGE STUD
VNSP-2206 100/BOX RED #22 - #18 AWG 6
VNSP-2208 100/BOX RED #22 - #18 AWG 8
VNSP-2210 100/BOX RED #22 - #18 AWG 10
VNSP-1606 100/BOX BLUE #16 - #14 AWG 6
22 AWG - 10 AWG VNSP-1608 100/BOX BLUE #16 - #14 AWG 8
VNSP-1610 100/BOX BLUE #16 - #14 AWG 10
VNSP-1206 100/BOX YELLOW #12 - #10 AWG 6
VNSP-1208 100/BOX YELLOW #12 - #10 AWG 8
VNSP-1210 100/BOX YELLOW #12 - #10 AWG 10
VNSP-1214 100/BOX YELLOW #12 - #10 AWG 1/4”
FLANGED SPADE (FORK) TERMINALS
PART NO PKG COLOR WIRE RANGE STUD
VNFL-2206 100/BOX RED #22 - #18 AWG 6
VNFL-2208 100/BOX RED #22 - #18 AWG 8
VNFL-2210 100/BOX RED #22 - #18 AWG 10
VNFL-1606 100/BOX BLUE #16 - #14 AWG 6
VNFL-1608 100/BOX BLUE #16 - #14 AWG 8
VNFL-1610 100/BOX BLUE #16 - #14 AWG 10
VNFL-1206 100/BOX YELLOW #12 - #10 AWG 6
22 AWG - 10 AWG VNFL-1208 100/BOX YELLOW #12 - #10 AWG 8
VNFL-1210 100/BOX YELLOW #12 - #10 AWG 10
SNAP SPADE (FORK) TERMINALS
PART NO PKG COLOR WIRE RANGE STUD
VNSS-2206 100/BOX RED #22 - #18 AWG 6
VNSS-2208 100/BOX RED #22 - #18 AWG 8
VNSS-2210 100/BOX RED #22 - #18 AWG 10
VNSS-1606 100/BOX BLUE #16 - #14 AWG 6
VNSS-1608 100/BOX BLUE #16 - #14 AWG 8
VNSS-1610 100/BOX BLUE #16 - #14 AWG 10
VNSS-1206 100/BOX YELLOW #12 - #10 AWG 6
22 AWG - 10 AWG VNSS-1208 100/BOX YELLOW #12 - #10 AWG 8
VNSS-1210 100/BOX YELLOW #12 - #10 AWG 10
Page 46 Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com
Copyright Positive Technologies, Inc 2018
