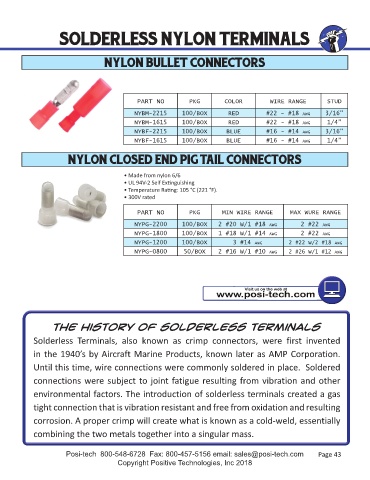

Page 43 - Catalog 26 2019

SOLDERLESS NYLON TERMINALS

NYLON BULLET CONNECTORS

PART NO PKG COLOR WIRE RANGE STUD

NYBM-2215 100/BOX RED #22 - #18 AWG 3/16”
NYBM-1615 100/BOX RED #22 - #18 AWG 1/4”
NYBF-2215 100/BOX BLUE #16 - #14 AWG 3/16”
NYBF-1615 100/BOX BLUE #16 - #14 AWG 1/4”

NYLON CLOSED END PIGTAIL CONNECTORS

• Made from nylon 6/6
• UL 94V-2 Self Ex nguishing
• Temperature Ra ng: 105 °C (221 °F).
• 300V rated

PART NO PKG MIN WIRE RANGE MAX WURE RANGE

NYPG-2200 100/BOX 2 #20 W/1 #18 AWG 2 #22 AWG
NYPG-1800 100/BOX 1 #18 W/1 #14 AWG 2 #22 AWG
NYPG-1200 100/BOX 3 #14 AWG 2 #22 W/2 #18 AWG
NYPG-0800PG-0800 50/B 2 2
50/BOXOX
NY
2 #16 W/1 #10 AWG #16 W/1 #10 AWG
2 #26 W/1 #12 AWG #26 W/1 #12 AWG

The history of Solderless Terminals

Solderless Terminals, also known as crimp connectors, were first invented

in the 1940’s by Aircraft Marine Products, known later as AMP Corporation.

Until this time, wire connections were commonly soldered in place. Soldered

connections were subject to joint fatigue resulting from vibration and other
environmental factors. The introduction of solderless terminals created a gas

tight connection that is vibration resistant and free from oxidation and resulting

corrosion. A proper crimp will create what is known as a cold-weld, essentially

combining the two metals together into a singular mass.
