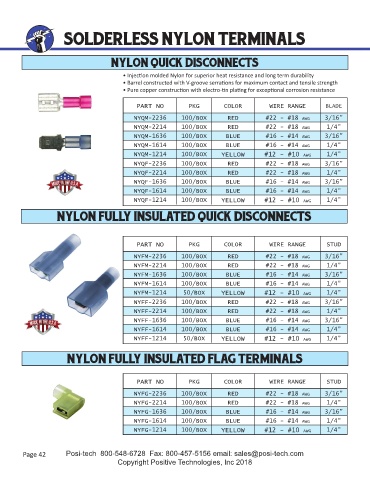

Page 42 - Catalog 26 2019

SOLDERLESS NYLON TERMINALS

NYLON QUICK DISCONNECTS

• Injec on molded Nylon for superior heat resistance and long term durability
• Barrel constructed with V-groove serra ons for maximum contact and tensile strength
• Pure copper construc on with electro- n pla ng for excep onal corrosion resistance

PART NO PKG COLOR WIRE RANGE BLADE

NYQM-2236 100/BOX RED #22 - #18 AWG 3/16”
NYQM-2214 100/BOX RED #22 - #18 AWG 1/4”
NYQM-1636 100/BOX BLUE #16 - #14 AWG 3/16”
NYQM-1614 100/BOX BLUE #16 - #14 AWG 1/4”
NYQM-1214 100/BOX YELLOW #12 - #10 AWG 1/4”
NYQF-2236 100/BOX RED #22 - #18 AWG 3/16”
NYQF-2214 100/BOX RED #22 - #18 AWG 1/4”
NYQF-1636 100/BOX BLUE #16 - #14 AWG 3/16”
NYQF-1614 100/BOX BLUE #16 - #14 AWG 1/4”
NYQF-1214 100/BOX YELLOW #12 - #10 AWG 1/4”

NYLON FULLY INSULATED QUICK DISCONNECTS

PART NO PKG COLOR WIRE RANGE STUD
NYFM-2236 100/BOX RED #22 - #18 AWG 3/16”
NYFM-2214 100/BOX RED #22 - #18 AWG 1/4”
NYFM-1636 100/BOX BLUE #16 - #14 AWG 3/16”
NYFM-1614 100/BOX BLUE #16 - #14 AWG 1/4”
NYFM-1214 50/BOX YELLOW #12 - #10 AWG 1/4”
NYFF-2236 100/BOX RED #22 - #18 AWG 3/16”
NYFF-2214 100/BOX RED #22 - #18 AWG 1/4”
NYFF-1636 100/BOX BLUE #16 - #14 AWG 3/16”
NYFF-1614 100/BOX BLUE #16 - #14 AWG 1/4”
NYFF-1214 50/BOX YELLOW #12 - #10 AWG 1/4”

NYLON FULLY INSULATED FLAG TERMINALS

PART NO PKG COLOR WIRE RANGE STUD

NYFG-2236 100/BOX RED #22 - #18 AWG 3/16”
NYFG-2214 100/BOX RED #22 - #18 AWG 1/4”
NYFG-1636 100/BOX BLUE #16 - #14 AWG 3/16”
NYFG-1614 100/BOX BLUE #16 - #14 AWG 1/4”
NYFG-1214 100/BOX YELLOW #12 - #10 AWG 1/4”

Page 42 Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com
Copyright Positive Technologies, Inc 2018
