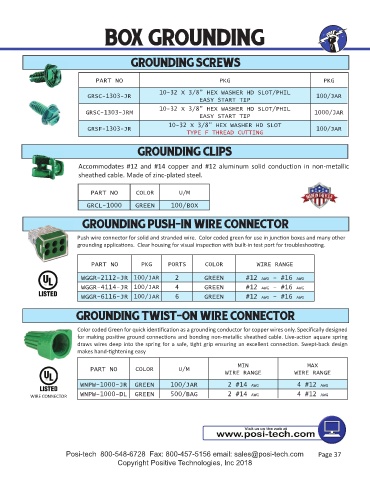

Page 37 - Catalog 26 2019

BOX GROUNDING

GROUNDING SCREWS

PART NO PKG PKG
10-32 X 3/8” HEX WASHER HD SLOT/PHIL
GRSC-1303-JR 100/JAR
EASY START TIP
10-32 X 3/8” HEX WASHER HD SLOT/PHIL
GRSC-1303-JRM 1000/JAR
EASY START TIP
10-32 X 3/8” HEX WASHER HD SLOT
GRSF-1303-JR 100/JAR
TYPE F THREAD CUTTING

GROUNDING CLIPS

Accommodates #12 and #14 copper and #12 aluminum solid conduction in non-metallic
sheathed cable. Made of zinc-plated steel.

PART NO COLOR U/M

GRCL-1000 GREEN 100/BOX

GROUNDING PUSH-IN WIRE CONNECTOR

Push wire connector for solid and stranded wire. Color coded green for use in junc on boxes and many other
grounding applica ons. Clear housing for visual inspec on with built-in test port for troubleshoo ng.

PART NO PKG PORTS COLOR WIRE RANGE

WGGR-2112-JR 100/JAR 2 GREEN #12 AWG - #16 AWG
WGGR-4114-JR 100/JAR 4 GREEN #12 AWG - #16 AWG
WGGR-6116-JR 100/JAR 6 GREEN #12 AWG - #16 AWG

GROUNDING TWIST-ON WIRE CONNECTOR

Color coded Green for quick iden fi ca on as a grounding conductor for copper wires only. Specifi cally designed
for making posi ve ground connec ons and bonding non-metallic sheathed cable. Live-ac on aquare spring
draws wires deep into the spring for a safe, ght grip ensuring an excellent connec on. Swept-back design
makes hand- ghtening easy

MIN MAX
PART NO COLOR U/M
WIRE RANGE WIRE RANGE
WNPW-1000-JR GREEN 100/JAR 2 #14 AWG 4 #12 AWG
WNPW-1000-DL GREEN 500/BAG
WIRE CONNECTOR 2 #14 AWG 4 #12 AWG
