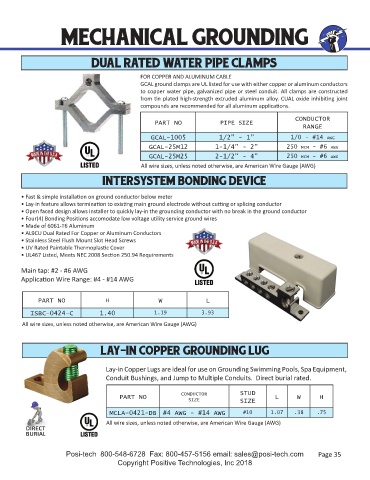

Page 35 - Catalog 26 2019

MECHANICAL GROUNDING

DUAL RATED WATER PIPE CLAMPS

FOR COPPER AND ALUMINUM CABLE
GCAL ground clamps are UL listed for use with either copper or aluminum conductors
to copper water pipe, galvanized pipe or steel conduit. All clamps are constructed
from n plated high-strength extruded aluminum alloy. CUAL oxide inhibi ng joint
compounds are recommended for all aluminum applica ons.

CONDUCTOR
PART NO PIPE SIZE
RANGE
GCAL-1005 1/2” - 1” 1/0 - #14 AWG
GCAL-25M12 1-1/4” - 2” 250 MCM - #6 AWG
GCAL-25M25 2-1/2” - 4” 250 MCM - #6 AWG
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
INTERSYSTEM BONDING DEVICE

• Fast & simple installa on on ground conductor below meter
• Lay-in feature allows termina on to exis ng main ground electrode without cu ng or splicing conductor
• Open faced design allows installer to quickly lay-in the grounding conductor with no break in the ground conductor
• Four(4) Bonding Posi ons accomodate low voltage u lity service ground wires
• Made of 6061-T6 Aluminum
• AL9CU Dual Rated For Copper or Aluminum Conductors
• Stainless Steel Flush Mount Slot Head Screws
• UV Rated Paintable Thermoplas c Cover
• UL467 Listed, Meets NEC 2008 Sec on 250.94 Requirements

Main tap: #2 - #6 AWG
Applica on Wire Range: #4 - #14 AWG

PART NO H W L

ISBC-0424-C 1.40 1.19 3.93
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

LAY-IN COPPER GROUNDING LUG

Lay-in Copper Lugs are ideal for use on Grounding Swimming Pools, Spa Equipment,
Conduit Bushings, and Jump to Multiple Conduits. Direct burial rated.

CONDUCTOR STUD
PART NO L W H
SIZE SIZE
MCLA-0421-DB #4 AWG - #14 AWG #10 1.07 .38 .75

All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
