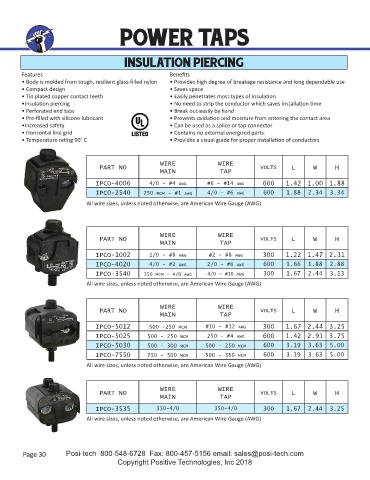

Page 30 - Catalog 26 2019

POWER TAPS

INSULATION PIERCING

Features Benefi ts
• Body is molded from tough, resilient glass-fi lled nylon • Provides high degree of breakage resistance and long dependable use
• Compact design • Saves space
• Tin plated copper contact teeth • Easily penetrates most types of insula on
•Insula on piercing • No need to strip the conductor which saves installa on me
• Perforated end tabs • Break out easily by hand
• Pre-fi lled with silicone lubricant • Prevents oxida on and moisture from entering the contact area
•Increased safety • Can be used as a splice or tap connector
• Horizontal line grid • Contains no external energized parts.
• Temperature ra ng 90˚ C • Provides a visual guide for proper installa on of conductors

WIRE WIRE
PART NO VOLTS L W H
MAIN TAP
IPCO-4006 4/0 - #4 AWG #6 - #14 AWG 600 1.42 1.00 1.88
IPC0-2540 250 MCM - #1 AWG 4/0 - #6 AWG 600 1.88 2.34 3.34
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

WIRE WIRE
PART NO VOLTS L W H
MAIN TAP
IPCO-1002 1/0 - #8 AWG #2 - #8 AWG 300 1.22 1.47 2.31
IPCO-4020 4/0 - #2 AWG 2/0 - #6 AWG 600 1.66 1.88 2.88
IPCO-3540 350 MCM - 4/0 AWG 4/0 - #10 AWG 300 1.67 2.44 3.13
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

WIRE WIRE
PART NO VOLTS L W H
MAIN TAP
IPCO-5012 500 -250 MCM #10 - #12 AWG 300 1.67 2.44 3.25
IPCO-5025 500 - 250 MCM 250 - #4 AWG 600 1.42 2.91 3.75
IPCO-5030 500 - 300 MCM 500 - 250 MCM 600 3.19 3.63 5.00
IPCO-7550 750 - 500 MCM 500 - 350 MCM 600 3.19 3.63 5.00
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

WIRE WIRE
PART NO VOLTS L W H
MAIN TAP
IPCO-3535 350-4/0 350-4/0 300 1.67 2.44 3.25
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
