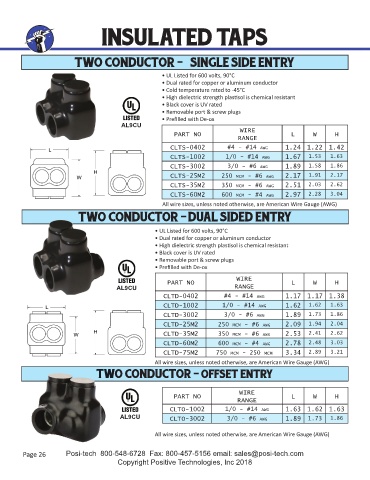

INSULATED TAPS

TWO CONDUCTOR - SINGLE SIDE ENTRY

• UL Listed for 600 volts, 90°C
• Dual rated for copper or aluminum conductor
• Cold temperature rated to -45°C
• High dielectric strength plas sol is chemical resistant
• Black cover is UV rated
• Removable port & screw plugs
• Prefi lled with De-ox
AL9CU
WIRE
PART NO L W H
RANGE
CLTS-0402 #4 - #14 AWG 1.24 1.22 1.42
CLTS-1002 1/0 - #14 AWG 1.67 1.53 1.63
CLTS-3002 3/0 - #6 AWG 1.89 1.58 1.86
CLTS-25M2 250 MCM - #6 AWG 2.17 1.91 2.17
CLTS-35M2 350 MCM - #6 AWG 2.51 2.03 2.62
CLTS-60M2 600 MCM - #4 AWG 2.97 2.28 3.04
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
TWO CONDUCTOR -DUAL SIDED ENTRYO
TW
• UL Listed for 600 volts, 90°C
• Dual rated for copper or aluminum conductor
• High dielectric strength plas sol is chemical resistant
• Black cover is UV rated
• Removable port & screw plugs
• Prefi lled with De-ox

WIRE
PART NO L W H
AL9CU RANGE
CLTD-0402 #4 - #14 AWG 1.17 1.17 1.38
CLTD-1002 1/0 - #14 AWG 1.62 1.62 1.63
CLTD-3002 3/0 - #6 AWG 1.89 1.73 1.86
CLTD-25M2 250 MCM - #6 AWG 2.09 1.94 2.04
CLTD-35M2 350 MCM - #6 AWG 2.53 2.41 2.62
CLTD-60M2 600 MCM - #4 AWG 2.78 2.48 3.03
CLTD-75M2 750 MCM - 250 MCM 3.34 2.89 3.21
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
TWO CONDUCTOR - OFFSET ENTRYW
T

WIRE
PART NO L W H
RANGE
CLTO-1002 1/0 - #14 AWG 1.63 1.62 1.63
AL9CU CLTO-3002 3/0 - #6 AWG 1.89 1.73 1.86

All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
