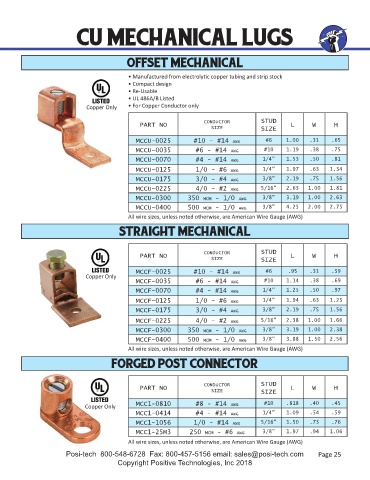

Page 25 - Catalog 26 2019

CU MECHANICAL LUGS

OFFSET MECHANICAL

• Manufactured from electroly c copper tubing and strip stock
• Compact design
• Re-Usable
• UL 486A/B Listed
Copper Only • For Copper Conductor only

CONDUCTOR STUD
PART NO L W H
SIZE SIZE
MCCU-0025 #10 - #14 AWG #6 1.00 .31 .65
MCCU-0035 #6 - #14 AWG #10 1.19 .38 .75
MCCU-0070 #4 - #14 AWG 1/4” 1.53 .50 .81
MCCU-0125 1/0 - #6 AWG 1/4” 1.97 .63 1.34
MCCU-0175 3/0 - #4 AWG 3/8” 2.19 .75 1.56
MCCU-0225 4/0 - #2 AWG 5/16” 2.63 1.00 1.81
MCCU-0300 350 MCM - 1/0 AWG 3/8” 3.19 1.00 2.63
MCCU-0400 500 MCM - 1/0 AWG 3/8” 4.25 2.00 2.75
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

STRAIGHT MECHANICAL

CONDUCTOR STUD
PART NO L W H
SIZE SIZE
MCCF-0025 #10 - #14 AWG #6 .95 .31 .59
Copper Only
MCCF-0035 #6 - #14 AWG #10 1.14 .38 .69
MCCF-0070 #4 - #14 AWG 1/4” 1.25 .50 .97
MCCF-0125 1/0 - #6 AWG 1/4” 1.94 .63 1.25
MCCF-0175 3/0 - #4 AWG 3/8” 2.19 .75 1.56

MCCF-0225 4/0 - #2 AWG 5/16” 2.38 1.00 1.66
MCCF-0300 350 MCM - 1/0 AWG 3/8” 3.19 1.00 2.38
MCCF-0400 500 MCM - 1/0 AWG 3/8” 3.88 1.50 2.56
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

FORGED POST CONNECTOR

CONDUCTOR STUD
PART NO L W H
SIZE SIZE
MCC1-0810 #8 - #14 AWG #10 .818 .40 .45
Copper Only
MCC1-0414 #4 - #14 AWG 1/4” 1.09 .54 .59
MCC1-1056 1/0 - #14 AWG 5/16” 1.50 .73 .76
MCC1-25M3 250 MCM - #6 AWG 3/8” 1.97 .94 1.06

All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com Page 25
Copyright Positive Technologies, Inc 2018
