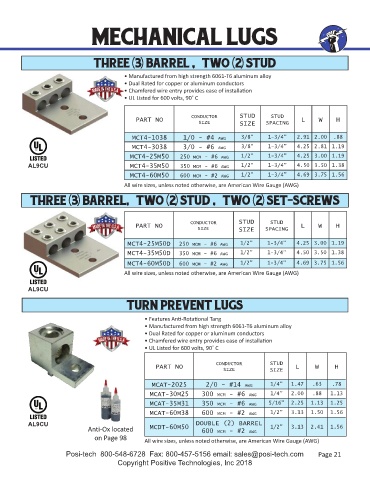

Page 21 - Catalog 26 2019

MECHANICAL LUGS

THREE (3) BARREL , TWO (2) STUD

• Manufactured from high strength 6061-T6 aluminum alloy
• Dual Rated for copper or aluminum conductors
• Chamfered wire entry provides ease of installa on
• UL Listed for 600 volts, 90˚ C

PART NO CONDUCTOR STUD STUD L W H
SIZE SIZE SPACING

MCT4-1038 1/0 - #4 AWG 3/8” 1-3/4” 2.91 2.00 .88
MCT4-3038 3/0 - #6 AWG 3/8” 1-3/4” 4.25 2.81 1.19
MCT4-25M50 250 MCM - #6 AWG 1/2” 1-3/4” 4.25 3.00 1.19
AL9CU MCT4-35M50 350 MCM - #6 AWG 1/2” 1-3/4” 4.50 3.50 1.38
MCT4-60M50 600 MCM - #2 AWG 1/2” 1-3/4” 4.69 3.75 1.56
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
THREE (3) BARREL, TWO (2) STUD , TWO (2) SET-SCREWS

STUD
PART NO CONDUCTOR STUD SPACING L W H
SIZE
SIZE
MCT4-25M50D 250 MCM - #6 AWG 1/2” 1-3/4” 4.25 3.00 1.19
MCT4-35M50D 350 MCM - #6 AWG 1/2” 1-3/4” 4.50 3.50 1.38
MCT4-60M50D 600 MCM - #2 AWG 1/2” 1-3/4” 4.69 3.75 1.56
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

AL9CU

TURN PREVENT LUGS

• Features An -Rota onal Tang
• Manufactured from high strength 6061-T6 aluminum alloy
• Dual Rated for copper or aluminum conductors
• Chamfered wire entry provides ease of installa on
• UL Listed for 600 volts, 90˚ C

CONDUCTOR STUD
PART NO L W H
SIZE SIZE

MCAT-2025 2/0 - #14 AWG 1/4” 1.47 .63 .78
MCAT-30M25 300 MCM - #6 AWG 1/4” 2.00 .88 1.13
MCAT-35M31 350 MCM - #6 AWG 5/16” 2.25 1.13 1.25
MCAT-60M38 600 MCM - #2 AWG 1/2” 3.13 1.50 1.56

AL9CU DOUBLE (2) BARREL
Anti-Ox located MCDT-60M50 600 MCM - #2 AWG 1/2” 3.13 2.41 1.56
on Page 98
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
