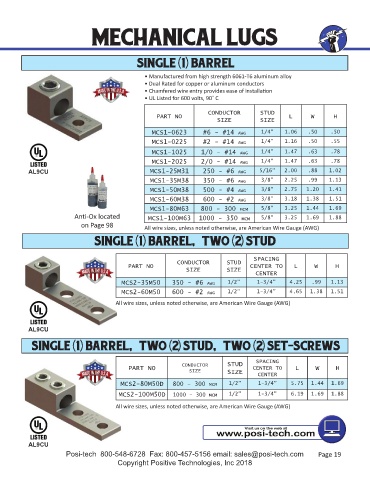

Page 19 - Catalog 26 2019

MECHANICAL LUGS

SINGLE (1) BARREL

• Manufactured from high strength 6061-T6 aluminum alloy
• Dual Rated for copper or aluminum conductors
• Chamfered wire entry provides ease of installa on
• UL Listed for 600 volts, 90˚ C

CONDUCTOR STUD
PART NO L W H
SIZE SIZE
MCS1-0623 #6 - #14 AWG 1/4” 1.06 .50 .50
MCS1-0225 #2 - #14 AWG 1/4” 1.16 .50 .55
MCS1-1025 1/0 - #14 AWG 1/4” 1.47 .63 .78
MCS1-2025 2/0 - #14 AWG 1/4” 1.47 .63 .78
AL9CU MCS1-25M31 250 - #6 AWG 5/16” 2.00 .88 1.02
MCS1-35M38 350 - #6 AWG 3/8” 2.25 .99 1.13
MCS1-50M38 500 - #4 AWG 3/8” 2.75 1.20 1.41
MCS1-60M38 600 - #2 AWG 3/8” 3.18 1.38 1.51
MCS1-80M63 800 - 300 MCM 5/8” 3.25 1.44 1.69
Anti-Ox located MCS1-100M63 1000 - 350 MCM 5/8” 3.25 1.69 1.88
on Page 98
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
SINGLE (1) BARREL, TWO (2) STUD

SPACING
CONDUCTOR STUD
PART NO CENTER TO L W H
SIZE SIZE
CENTER
MCS2-35M50 350 - #6 AWG 1/2” 1-3/4” 4.25 .99 1.13
MCS2-60M50 600 - #2 AWG 1/2” 1-3/4” 4.65 1.38 1.51
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

AL9CU

SINGLE (1) BARREL, TWO (2) STUD, TWO (2) SET-SCREWS

SPACING
CONDUCTOR STUD
PART NO SIZE CENTER TO L W H
SIZE
CENTER
MCS2-80M50D 800 - 300 MCM 1/2” 1-3/4” 5.75 1.44 1.69
MCS2-100M50D 1000 - 300 MCM 1/2” 1-3/4” 6.19 1.69 1.88
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

AL9CU
Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com Page 19
Copyright Positive Technologies, Inc 2018
