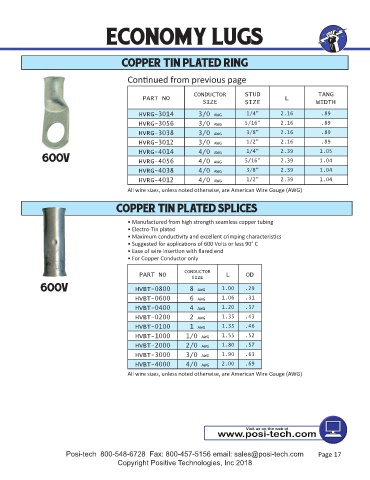

Page 17 - Catalog 26 2019

ECONOMY LUGS

COPPER TIN PLATED RING

Con nued from previous page

CONDUCTOR STUD TANG
PART NO L
SIZE SIZE WIDTH
HVRG-3014 3/0 AWG 1/4” 2.16 .89
HVRG-3056 3/0 AWG 5/16” 2.16 .89
HVRG-3038 3/0 AWG 3/8” 2.16 .89
HVRG-3012 3/0 AWG 1/2” 2.16 .89
HVRG-4014 4/0 AWG 1/4” 2.39 1.05
600V00V HVRG-4056 4/0 AWG 5/16” 2.39 1.04

HVRG-4038 4/0 AWG 3/8” 2.39 1.04
HVRG-4012 4/0 AWG 1/2” 2.39 1.04

All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

COPPER TIN PLATED SPLICES

• Manufactured from high strength seamless copper tubing
• Electro-Tin plated
• Maximum conduc vity and excellent crimping characteris cs
• Suggested for applica ons of 600 Volts or less 90° C
• Ease of wire inser on with fl ared end
• For Copper Conductor only

CONDUCTOR
PART NO SIZE L OD
600V HVBT-0800 8 AWG 1.00 .29

HVBT-0600 6 AWG 1.06 .31
HVBT-0400 4 AWG 1.20 .37
HVBT-0200 2 AWG 1.35 .43
HVBT-0100 1 AWG 1.35 .46
HVBT-1000 1/0 AWG 1.55 .52
HVBT-2000 2/0 AWG 1.80 .57
HVBT-3000 3/0 AWG 1.90 .63
HVBT-4000 4/0 AWG 2.00 .69

All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com Page 17
Copyright Positive Technologies, Inc 2018
