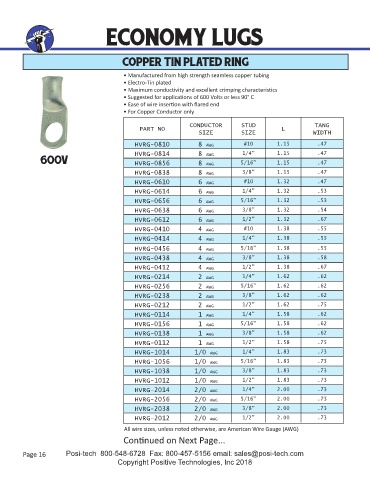

Page 16 - Catalog 26 2019

ECONOMY LUGS

COPPER TIN PLATED RING

• Manufactured from high strength seamless copper tubing
• Electro-Tin plated
• Maximum conduc vity and excellent crimping characteris cs
• Suggested for applica ons of 600 Volts or less 90° C
• Ease of wire inser on with fl ared end
• For Copper Conductor only

CONDUCTOR STUD TANG
PART NO L
SIZE SIZE WIDTH
HVRG-0810 8 AWG #10 1.15 .47
HVRG-0814 8 AWG 1/4” 1.15 .47
600V00V HVRG-0856 8 AWG 5/16” 1.15 .47

HVRG-0838 8 AWG 3/8” 1.15 .47
HVRG-0610 6 AWG #10 1.32 .47
HVRG-0614 6 AWG 1/4” 1.32 .53
HVRG-0656 6 AWG 5/16” 1.32 .53
HVRG-0638 6 AWG 3/8” 1.32 .54
HVRG-0612 6 AWG 1/2” 1.32 .67
HVRG-0410 4 AWG #10 1.38 .55
HVRG-0414 4 AWG 1/4” 1.38 .55
HVRG-0456 4 AWG 5/16” 1.38 .55
HVRG-0438 4 AWG 3/8” 1.38 .58
HVRG-0412 4 AWG 1/2” 1.38 .67
HVRG-0214 2 AWG 1/4” 1.62 .62
HVRG-0256 2 AWG 5/16” 1.62 .62
HVRG-0238 2 AWG 3/8” 1.62 .62
HVRG-0212 2 AWG 1/2” 1.62 .75
HVRG-0114 1 AWG 1/4” 1.58 .62
HVRG-0156 1 AWG 5/16” 1.58 .62
HVRG-0138 1 AWG 3/8” 1.58 .62
HVRG-0112 1 AWG 1/2” 1.58 .75
HVRG-1014 1/0 AWG 1/4” 1.83 .73
HVRG-1056 1/0 AWG 5/16” 1.83 .73
HVRG-1038 1/0 AWG 3/8” 1.83 .73
HVRG-1012 1/0 AWG 1/2” 1.83 .73
HVRG-2014 2/0 AWG 1/4” 2.00 .73
HVRG-2056 2/0 AWG 5/16” 2.00 .73
HVRG-2038 2/0 AWG 3/8” 2.00 .73
HVRG-2012 2/0 AWG 1/2” 2.00 .73
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
Con nued on Next Page...
