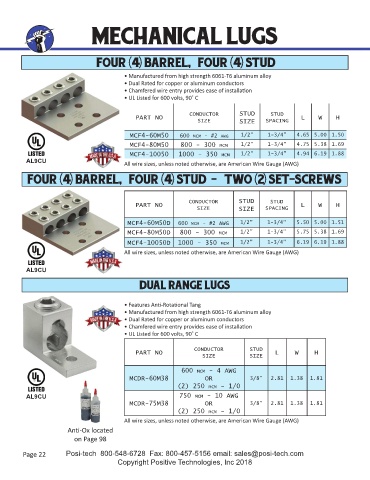

Page 22 - Catalog 26 2019

MECHANICAL LUGS

FOUR (4) BARREL, FOUR (4) STUD

• Manufactured from high strength 6061-T6 aluminum alloy
• Dual Rated for copper or aluminum conductors
• Chamfered wire entry provides ease of installa on
• UL Listed for 600 volts, 90˚ C

CONDUCTOR STUD STUD
PART NO L W H
SIZE SIZE SPACING
MCF4-60M50 600 MCM - #2 AWG 1/2” 1-3/4” 4.65 5.00 1.50
MCF4-80M50 800 - 300 MCM 1/2” 1-3/4” 4.75 5.38 1.69
MCF4-10050 1000 - 350 MCM 1/2” 1-3/4” 4.94 6.19 1.88
AL9CU
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

FOUR (4) BARREL, FOUR (4) STUD - TWO (2) SET-SCREWS

CONDUCTOR STUD STUD
PART NO L W H
SIZE SIZE SPACING
MCF4-60M50D 600 MCM - #2 AWG 1/2” 1-3/4” 5.50 5.00 1.51
MCF4-80M50D 800 - 300 MCM 1/2” 1-3/4” 5.75 5.38 1.69

MCF4-10050D 1000 - 350 MCM 1/2” 1-3/4” 6.19 6.19 1.88
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

AL9CU

DUAL RANGE LUGS

• Features An -Rota onal Tang
• Manufactured from high strength 6061-T6 aluminum alloy
• Dual Rated for copper or aluminum conductors
• Chamfered wire entry provides ease of installa on
• UL Listed for 600 volts, 90˚ C

CONDUCTOR STUD
PART NO L W H
SIZE SIZE
600 MCM - 4 AWG
MCDR-60M38 OR 3/8” 2.81 1.38 1.81
(2) 250 MCM - 1/0
AL9CU 750 MCM - 10 AWG
MCDR-75M38 OR 3/8” 2.81 1.38 1.81
(2) 250 MCM - 1/0
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
Anti-Ox located
on Page 98
