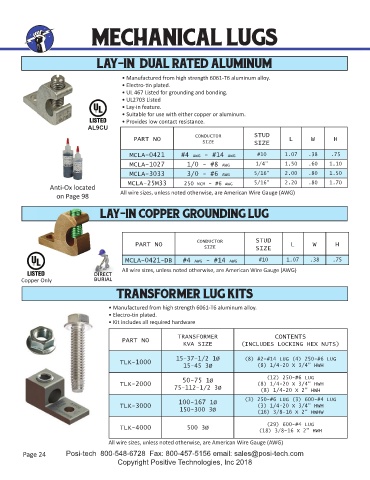

Page 24 - Catalog 26 2019

MECHANICAL LUGS

LAY-IN DUAL RATED ALUMINUM

• Manufactured from high strength 6061-T6 aluminum alloy.
• Electro- n plated.
• UL 467 Listed for grounding and bonding.
• UL2703 Listed
• Lay-in feature.
• Suitable for use with either copper or aluminum.
• Provides low contact resistance.
AL9CU
PART NO CONDUCTOR STUD L W H
SIZE
SIZE
MCLA-0421 #4 AWG - #14 AWG #10 1.07 .38 .75
MCLA-1027 1/0 - #8 AWG 1/4” 1.50 .60 1.10
MCLA-3033 3/0 - #6 AWG 5/16” 2.00 .80 1.50
MCLA-25M33 250 MCM - #6 AWG 5/16” 2.20 .80 1.70
Anti-Ox located
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
on Page 98

LAY-IN COPPER GROUNDING LUG

CONDUCTOR STUD
PART NO L W H
SIZE SIZE
MCLA-0421-DB #4 AWG - #14 AWG #10 1.07 .38 .75
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
Copper Only

TRANSFORMER LUG KITS

• Manufactured from high strength 6061-T6 aluminum alloy.
• Electro- n plated.
• Kit includes all required hardware

TRANSFORMER CONTENTS
PART NO
KVA SIZE (INCLUDES LOCKING HEX NUTS)
15-37-1/2 1Ø (8) #2-#14 LUG (4) 250-#6 LUG
TLK-1000
15-45 3Ø (8) 1/4-20 X 3/4” HWH
(12) 250-#6 LUG
50-75 1Ø
TLK-2000 (8) 1/4-20 X 3/4” HWH
75-112-1/2 3Ø
(8) 1/4-20 X 2” HWH
(3) 250-#6 LUG (3) 600-#4 LUG
100-167 1Ø
TLK-3000 (3) 1/4-20 X 3/4” HWH
150-300 3Ø
(16) 3/8-16 X 2” HWHW
(29) 600-#4 LUG
TLK-4000 500 3Ø
(18) 3/8-16 X 2” HWH
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
