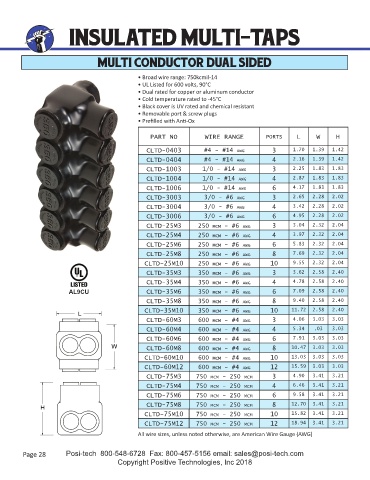

Page 28 - Catalog 26 2019

INSULATED MULTI-TAPS

MULTI CONDUCTOR DUAL SIDED

• Broad wire range: 750kcmil-14
• UL Listed for 600 volts, 90°C
• Dual rated for copper or aluminum conductor
• Cold temperature rated to -45°C
• Black cover is UV rated and chemical resistant
• Removable port & screw plugs
• Prefi lled with An -Ox

PART NO WIRE RANGE PORTS L W H
CLTD-0403 #4 - #14 AWG 3 1.70 1.39 1.42
CLTD-0404 #4 - #14 AWG 4 2.16 1.39 1.42
CLTD-1003 1/0 - #14 AWG 3 2.25 1.83 1.83
CLTD-1004 1/0 - #14 AWG 4 2.87 1.83 1.83
CLTD-1006 1/0 - #14 AWG 6 4.17 1.83 1.83
CLTD-3003 3/0 - #6 AWG 3 2.65 2.28 2.02
CLTD-3004 3/0 - #6 AWG 4 3.42 2.28 2.02
CLTD-3006 3/0 - #6 AWG 6 4.95 2.28 2.02
CLTD-25M3 250 MCM - #6 AWG 3 3.04 2.32 2.04
CLTD-25M4 250 MCM - #6 AWG 4 3.97 2.32 2.04
CLTD-25M6 250 MCM - #6 AWG 6 5.83 2.32 2.04
CLTD-25M8 250 MCM - #6 AWG 8 7.69 2.32 2.04
CLTD-25M10 250 MCM - #6 AWG 10 9.55 2.32 2.04
CLTD-35M3 350 MCM - #6 AWG 3 3.62 2.58 2.40
CLTD-35M4 350 MCM - #6 AWG 4 4.78 2.58 2.40
AL9CU CLTD-35M6 350 MCM - #6 AWG 6 7.09 2.58 2.40
CLTD-35M8 350 MCM - #6 AWG 8 9.40 2.58 2.40
CLTD-35M10 350 MCM - #6 AWG 10 11.72 2.58 2.40
CLTD-60M3 600 MCM - #4 AWG 3 4.06 3.03 3.03
CLTD-60M4 600 MCM - #4 AWG 4 5.34 .03 3.03
CLTD-60M6 600 MCM - #4 AWG 6 7.91 3.03 3.03
CLTD-60M8 600 MCM - #4 AWG 8 10.47 3.03 3.03
CLTD-60M10 600 MCM - #4 AWG 10 13.03 3.03 3.03
CLTD-60M12 600 MCM - #4 AWG 12 15.59 3.03 3.03
CLTD-75M3 750 MCM - 250 MCM 3 4.90 3.41 3.21
CLTD-75M4 750 MCM - 250 MCM 4 6.46 3.41 3.21
CLTD-75M6 750 MCM - 250 MCM 6 9.58 3.41 3.21
CLTD-75M8 750 MCM - 250 MCM 8 12.70 3.41 3.21
CLTD-75M10 750 MCM - 250 MCM 10 15.82 3.41 3.21
CLTD-75M12 750 MCM - 250 MCM 12 18.94 3.41 3.21
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

Page 28 Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com
Copyright Positive Technologies, Inc 2018
