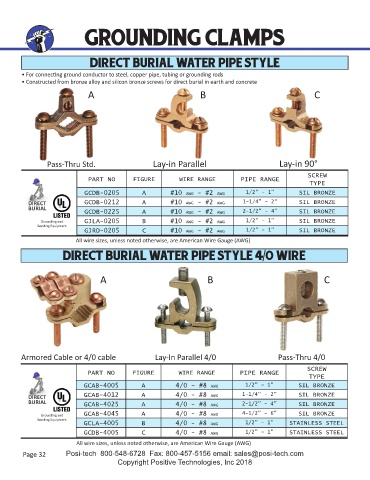

Page 32 - Catalog 26 2019
P. 32
GROUNDING CLAMPS
DIRECT BURIAL WATER PIPE STYLE
• For connec ng ground conductor to steel, copper pipe, tubing or grounding rods
• Constructed from bronze alloy and silicon bronze screws for direct burial in earth and concrete
A B C
Pass-Thru Std. Lay-in Parallel Lay-in 90°
SCREW
PART NO FIGURE WIRE RANGE PIPE RANGE
TYPE
GCDB-0205 A #10 AWG - #2 AWG 1/2” - 1” SIL BRONZE
GCDB-0212 A #10 AWG - #2 AWG 1-1/4” - 2” SIL BRONZE
GCDB-0225 A #10 AWG - #2 AWG 2-1/2” - 4” SIL BRONZE
Grounding and GJLA-0205 B #10 AWG - #2 AWG 1/2” - 1” SIL BRONZE
Bonding Equipment
GJRD-0205 C #10 AWG - #2 AWG 1/2” - 1” SIL BRONZE
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
DIRECT BURIAL WATER PIPE STYLE 4/0 WIRE
A B C
Armored Cable or 4/0 cable Lay-In Parallel 4/0 Pass-Thru 4/0
SCREW
PART NO FIGURE WIRE RANGE PIPE RANGE
TYPE
GCAB-4005 A 4/0 - #8 AWG 1/2” - 1” SIL BRONZE
GCAB-4012 A 4/0 - #8 AWG 1-1/4” - 2” SIL BRONZE
GCAB-4025 A 4/0 - #8 AWG 2-1/2” - 4” SIL BRONZE
GCAB-4045 A 4/0 - #8 AWG 4-1/2” - 6” SIL BRONZE
Grounding and
Bonding Equipment
GCLA-4005 B 4/0 - #8 AWG 1/2” - 1” STAINLESS STEEL
GCDB-4005 C 4/0 - #8 AWG 1/2” - 1” STAINLESS STEEL
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
Page 32 Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com
Copyright Positive Technologies, Inc 2018
