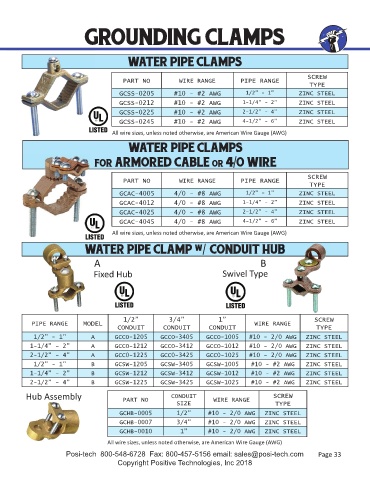

Page 33 - Catalog 26 2019

GROUNDING CLAMPS

WATER PIPE CLAMPS

SCREW
PART NO WIRE RANGE PIPE RANGE
TYPE
GCSS-0205 #10 - #2 AWG 1/2” - 1” ZINC STEEL
GCSS-0212 #10 - #2 AWG 1-1/4” - 2” ZINC STEEL
GCSS-0225 #10 - #2 AWG 2-1/2” - 4” ZINC STEEL
GCSS-0245 #10 - #2 AWG 4-1/2” - 6” ZINC STEEL

All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

WATER PIPE CLAMPS
FOR ARMORED CABLE or 4/0 WIRE

SCREW
PART NO WIRE RANGE PIPE RANGE
TYPE
GCAC-4005 4/0 - #8 AWG 1/2” - 1” ZINC STEEL
GCAC-4012 4/0 - #8 AWG 1-1/4” - 2” ZINC STEEL
GCAC-4025 4/0 - #8 AWG 2-1/2” - 4” ZINC STEEL
GCAC-4045 4/0 - #8 AWG 4-1/2” - 6” ZINC STEEL

All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
WATER PIPE CLAMP / CONDUIT HUBB
W
W

A B
Fixed Hub Swivel Type

1/2” 3/4” 1” SCREW
PIPE RANGE MODEL WIRE RANGE
CONDUIT CONDUIT CONDUIT TYPE
1/2” - 1” A GCCO-1205 GCCO-3405 GCCO-1005 #10 - 2/0 AWG ZINC STEEL
1-1/4” - 2” A GCCO-1212 GCCO-3412 GCCO-1012 #10 - 2/0 AWG ZINC STEEL
2-1/2” - 4” A GCC0-1225 GCC0-3425 GCC0-1025 #10 - 2/0 AWG ZINC STEEL
1/2” - 1” B GCSW-1205 GCSW-3405 GCSW-1005 #10 - #2 AWG ZINC STEEL
1-1/4” - 2” B GCSW-1212 GCSW-3412 GCSW-1012 #10 - #2 AWG ZINC STEEL
2-1/2” - 4” B GCSW-1225 GCSW-3425 GCSW-1025 #10 - #2 AWG ZINC STEEL

Hub Assembly PART NO CONDUIT WIRE RANGE SCREW
SIZE TYPE
GCHB-0005 1/2” #10 - 2/0 AWG ZINC STEEL
GCHB-0007 3/4” #10 - 2/0 AWG ZINC STEEL
GCHB-0010 1” #10 - 2/0 AWG ZINC STEEL

All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com Page 33
Copyright Positive Technologies, Inc 2018
