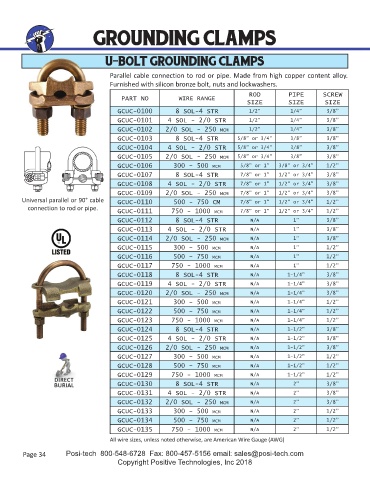

Page 34 - Catalog 26 2019

GROUNDING CLAMPS

U-BOLT GROUNDING CLAMPS

Parallel cable connection to rod or pipe. Made from high copper content alloy.
Furnished with silicon bronze bolt, nuts and lockwashers.
ROD PIPE SCREW
PART NO WIRE RANGE
SIZE SIZE SIZE
GCUC-0100 8 SOL-4 STR 1/2” 1/4” 3/8”
GCUC-0101 4 SOL - 2/0 STR 1/2” 1/4” 3/8”
GCUC-0102 2/0 SOL - 250 MCM 1/2” 1/4” 3/8”
GCUC-0103 8 SOL-4 STR 5/8” or 3/4” 3/8” 3/8”
GCUC-0104 4 SOL - 2/0 STR 5/8” or 3/4” 3/8” 3/8”
GCUC-0105 2/0 SOL - 250 MCM 5/8” or 3/4” 3/8” 3/8”
GCUC-0106 300 - 500 MCM 5/8” or 1” 3/8” or 3/4” 1/2”
GCUC-0107 8 SOL-4 STR 7/8” or 1” 1/2” or 3/4” 3/8”
GCUC-0108 4 SOL - 2/0 STR 7/8” or 1” 1/2” or 3/4” 3/8”
GCUC-0109 2/0 SOL - 250 MCM 7/8” or 1” 1/2” or 3/4” 3/8”
Universal parallel or 90° cable GCUC-0110 500 - 750 CM 7/8” or 1” 1/2” or 3/4” 1/2”
connection to rod or pipe.
GCUC-0111 750 - 1000 MCM 7/8” or 1” 1/2” or 3/4” 1/2”
GCUC-0112 8 SOL-4 STR N/A 1” 3/8”
GCUC-0113 4 SOL - 2/0 STR N/A 1” 3/8”
GCUC-0114 2/0 SOL - 250 MCM N/A 1” 3/8”
GCUC-0115 300 - 500 MCM N/A 1” 1/2”
GCUC-0116 500 - 750 MCM N/A 1” 1/2”
GCUC-0117 750 - 1000 MCM N/A 1” 1/2”
GCUC-0118 8 SOL-4 STR N/A 1-1/4” 3/8”
GCUC-0119 4 SOL - 2/0 STR N/A 1-1/4” 3/8”
GCUC-0120 2/0 SOL - 250 MCM N/A 1-1/4” 3/8”
GCUC-0121 300 - 500 MCM N/A 1-1/4” 1/2”
GCUC-0122 500 - 750 MCM N/A 1-1/4” 1/2”
GCUC-0123 750 - 1000 MCM N/A 1-1/4” 1/2”
GCUC-0124 8 SOL-4 STR N/A 1-1/2” 3/8”
GCUC-0125 4 SOL - 2/0 STR N/A 1-1/2” 3/8”
GCUC-0126 2/0 SOL - 250 MCM N/A 1-1/2” 3/8”
GCUC-0127 300 - 500 MCM N/A 1-1/2” 1/2”
GCUC-0128 500 - 750 MCM N/A 1-1/2” 1/2”
GCUC-0129 750 - 1000 MCM N/A 1-1/2” 1/2”
GCUC-0130 8 SOL-4 STR N/A 2” 3/8”
GCUC-0131 4 SOL - 2/0 STR N/A 2” 3/8”
GCUC-0132 2/0 SOL - 250 MCM N/A 2” 3/8”
GCUC-0133 300 - 500 MCM N/A 2” 1/2”
GCUC-0134 500 - 750 MCM N/A 2” 1/2”
GCUC-0135 750 - 1000 MCM N/A 2” 1/2”
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)
