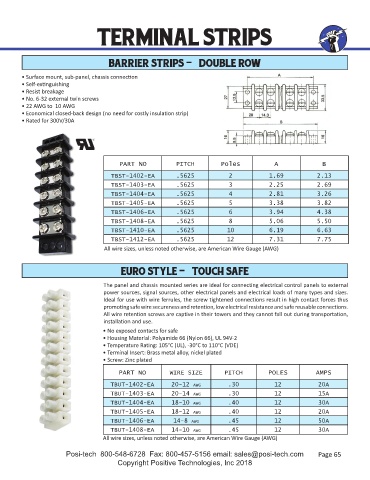

Page 65 - Catalog 26 2019

TERMINAL STRIPS

barrier strips - double row

• Surface mount, sub-panel, chassis connec on
• Self-ex nguishing
• Resist breakage
• No. 6-32 external twin screws
• 22 AWG to 10 AWG
• Economical closed-back design (no need for costly insula on strip)
• Rated for 300V/30A

PART NO PITCH Poles A B

TBST-1402-EA .5625 2 1.69 2.13
TBST-1403-EA .5625 3 2.25 2.69
TBST-1404-EA .5625 4 2.81 3.26
TBST-1405-EA .5625 5 3.38 3.82
TBST-1406-EA .5625 6 3.94 4.38
TBST-1408-EA .5625 8 5.06 5.50
TBST-1410-EA .5625 10 6.19 6.63
TBST-1412-EA .5625 12 7.31 7.75
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

euro style - touch safe

The panel and chassis mounted series are ideal for connecting electrical control panels to external
power sources, signal sources, other electrical panels and electrical loads of many types and sizes.
Ideal for use with wire ferrules, the screw tightened connections result in high contact forces thus
promoting safe wire secureness and retention, low electrical resistance and safe reusable connections.
All wire retention screws are captive in their towers and they cannot fall out during transportation,
installation and use.
• No exposed contacts for safe
• Housing Material: Polyamide 66 (Nylon 66), UL 94V-2
• Temperature Rating: 105°C (UL), -30°C to 110°C (VDE)
• Terminal Insert: Brass metal alloy, nickel plated
• Screw: Zinc plated
PART NO WIRE SIZE PITCH POLES AMPS

TBUT-1402-EA 20-12 AWG .30 12 20A
TBUT-1403-EA 20-14 AWG .30 12 15A
TBUT-1404-EA 18-10 AWG .40 12 30A
TBUT-1405-EA 18-12 AWG .40 12 20A
TBUT-1406-EA 14-8 AWG .45 12 50A
TBUT-1408-EA 14-10 AWG .45 12 30A
All wire sizes, unless noted otherwise, are American Wire Gauge (AWG)

Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com Page 65
Copyright Positive Technologies, Inc 2018
