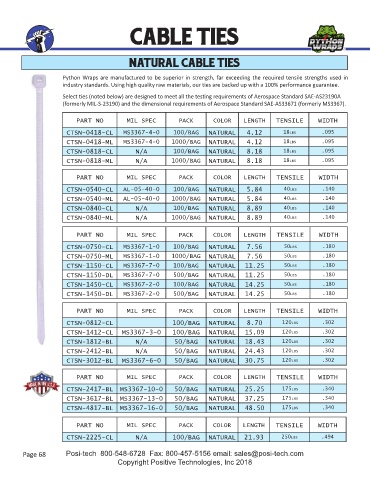

Page 68 - Catalog 26 2019
P. 68
CABLE TIES
NATURAL CABLE TIES
Python Wraps are manufactured to be superior in strength, far exceeding the required tensile strengths used in
industry standards. Using high quality raw materials, our ties are backed up with a 100% performance guarantee.
Select ties (noted below) are designed to meet all the testing requirements of Aerospace Standard SAE-AS23190A
(formerly MIL-S-23190) and the dimensional requirements of Aerospace Standard SAE-AS33671 (formerly MS3367).
PART NO MIL SPEC PACK COLOR LENGTH TENSILE WIDTH
CTSN-0418-CL MS3367-4-0 100/BAG NATURAL 4.12 18LBS .095
CTSN-0418-ML MS3367-4-0 1000/BAG NATURAL 4.12 18LBS .095
CTSN-0818-CL N/A 100/BAG NATURAL 8.18 18LBS .095
CTSN-0818-ML N/A 1000/BAG NATURAL 8.18 18LBS .095
PART NO MIL SPEC PACK COLOR LENGTH TENSILE WIDTH
CTSN-0540-CL AL-05-40-0 100/BAG NATURAL 5.84 40LBS .140
CTSN-0540-ML AL-05-40-0 1000/BAG NATURAL 5.84 40LBS .140
CTSN-0840-CL N/A 100/BAG NATURAL 8.89 40LBS .140
CTSN-0840-ML N/A 1000/BAG NATURAL 8.89 40LBS .140
PART NO MIL SPEC PACK COLOR LENGTH TENSILE WIDTH
CTSN-0750-CL MS3367-1-0 100/BAG NATURAL 7.56 50LBS .180
CTSN-0750-ML MS3367-1-0 1000/BAG NATURAL 7.56 50LBS .180
CTSN-1150-CL MS3367-7-0 100/BAG NATURAL 11.25 50LBS .180
CTSN-1150-DL MS3367-7-0 500/BAG NATURAL 11.25 50LBS .180
CTSN-1450-CL MS3367-2-0 100/BAG NATURAL 14.25 50LBS .180
CTSN-1450-DL MS3367-2-0 500/BAG NATURAL 14.25 50LBS .180
PART NO MIL SPEC PACK COLOR LENGTH TENSILE WIDTH
CTSN-0812-CL 100/BAG NATURAL 8.70 120LBS .302
CTSN-1412-CL MS3367-3-0 100/BAG NATURAL 15.09 120LBS .302
CTSN-1812-BL N/A 50/BAG NATURAL 18.43 120LBS .302
CTSN-2412-BL N/A 50/BAG NATURAL 24.43 120LBS .302
CTSN-3012-BL MS3367-6-0 50/BAG NATURAL 30.75 120LBS .302
PART NO MIL SPEC PACK COLOR LENGTH TENSILE WIDTH
CTSN-2417-BL MS3367-10-0 50/BAG NATURAL 25.25 175LBS .340
CTSN-3617-BL MS3367-13-0 50/BAG NATURAL 37.25 175LBS .340
CTSN-4817-BL MS3367-16-0 50/BAG NATURAL 48.50 175LBS .340
PART NO MIL SPEC PACK COLOR LENGTH TENSILE WIDTH
CTSN-2225-CL N/A 100/BAG NATURAL 21.93 250LBS .494
