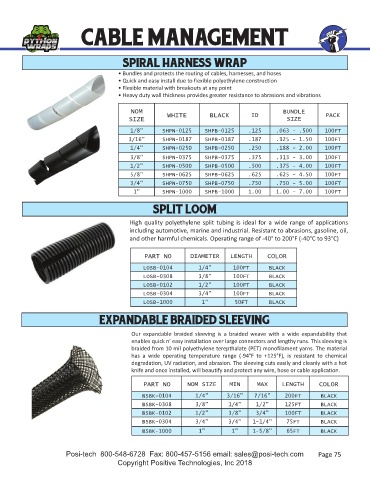

Page 75 - Catalog 26 2019

CABLE MANAGEMENT

SPIRAL HARNESS WRAP

• Bundles and protects the routing of cables, harnesses, and hoses
• Quick and easy install due to flexible polyethylene construction
• Flexible material with breakouts at any point
• Heavy duty wall thickness provides greater resistance to abrasions and vibrations

NOM WHITE BLACK ID BUNDLE PACK
SIZE SIZE
1/8” SHPN-0125 SHPB-0125 .125 .063 - .500 100FT
3/16” SHPN-0187 SHPB-0187 .187 .125 - 1.50 100FT
1/4” SHPN-0250 SHPB-0250 .250 .188 - 2.00 100FT
3/8” SHPN-0375 SHPB-0375 .375 .313 - 3.00 100FT
1/2” SHPN-0500 SHPB-0500 .500 .375 - 4.00 100FT
5/8” SHPN-0625 SHPB-0625 .625 .625 - 4.50 100FT
3/4” SHPN-0750 SHPB-0750 .750 .750 - 5.00 100FT
1” SHPN-1000 SHPB-1000 1.00 1.00 - 7.00 100FT

SPLIT LOOM

High quality polyethylene split tubing is ideal for a wide range of applications
including automotive, marine and industrial. Resistant to abrasions, gasoline, oil,
and other harmful chemicals. Operating range of -40° to 200°F (-40°C to 93°C)

PART NO DIAMETER LENGTH COLOR

LOSB-0104 1/4” 100FT BLACK
LOSB-0308 3/8” 100FT BLACK
LOSB-0102 1/2” 100FT BLACK
LOSB-0304 3/4” 100FT BLACK
LOSB-1000 1” 50FT BLACK

EXPANDABLE BRAIDED SLEEVING

Our expandable braided sleeving is a braided weave with a wide expandability that
enables quick n’ easy installation over large connectors and lengthy runs. This sleeving is
braided from 10 mil polyethylene terepthalate (PET) monofilament yarns. The material
has a wide operating temperature range (-94°F to +125°F), is resistant to chemical
degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot
knife and once installed, will beautify and protect any wire, hose or cable application.

PART NO NOM SIZE MIN MAX LENGTH COLOR
BSBK-0104 1/4” 3/16” 7/16” 200FT BLACK
BSBK-0308 3/8” 1/4” 1/2” 125FT BLACK
BSBK-0102 1/2” 3/8” 3/4” 100FT BLACK
BSBK-0304 3/4” 3/4” 1-1/4” 75FT BLACK
BSBK-1000 1” 1” 1-5/8” 65FT BLACK
