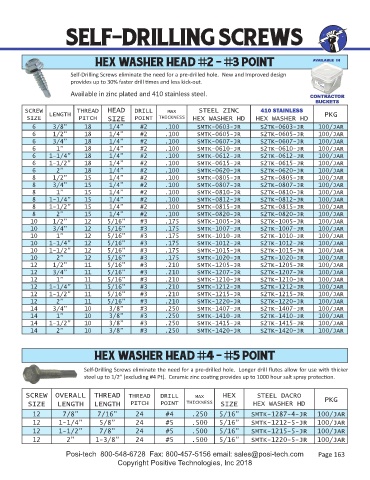

Page 163 - Catalog 26 2019

SELF-DRILLING SCREWS

HEX WASHER HEAD #2 - #3 POINT

Self-Drilling Screws eliminate the need for a pre-drilled hole. New and Improved design
provides up to 30% faster drill mes and less kick-out.

Available in zinc plated and 410 stainless steel.

SCREW LENGTH THREAD HEAD DRILL MAX STEEL ZINC 410 STAINLESS PKG
SIZE PITCH SIZE POINT THICKNESS HEX WASHER HD HEX WASHER HD
6 3/8” 18 1/4” #2 .100 SMTK-0603-JR S2TK-0603-JR 100/JAR
6 1/2” 18 1/4” #2 .100 SMTK-0605-JR S2TK-0605-JR 100/JAR
6 3/4” 18 1/4” #2 .100 SMTK-0607-JR S2TK-0607-JR 100/JAR
6 1” 18 1/4” #2 .100 SMTK-0610-JR S2TK-0610-JR 100/JAR
6 1-1/4” 18 1/4” #2 .100 SMTK-0612-JR S2TK-0612-JR 100/JAR
6 1-1/2” 18 1/4” #2 .100 SMTK-0615-JR S2TK-0615-JR 100/JAR
6 2” 18 1/4” #2 .100 SMTK-0620-JR S2TK-0620-JR 100/JAR
8 1/2” 15 1/4” #2 .100 SMTK-0805-JR S2TK-0805-JR 100/JAR
8 3/4” 15 1/4” #2 .100 SMTK-0807-JR S2TK-0807-JR 100/JAR
8 1” 15 1/4” #2 .100 SMTK-0810-JR S2TK-0810-JR 100/JAR
8 1-1/4” 15 1/4” #2 .100 SMTK-0812-JR S2TK-0812-JR 100/JAR
8 1-1/2” 15 1/4” #2 .100 SMTK-0815-JR S2TK-0815-JR 100/JAR
8 2” 15 1/4” #2 .100 SMTK-0820-JR S2TK-0820-JR 100/JAR
10 1/2” 12 5/16” #3 .175 SMTK-1005-JR S2TK-1005-JR 100/JAR
10 3/4” 12 5/16” #3 .175 SMTK-1007-JR S2TK-1007-JR 100/JAR
10 1” 12 5/16” #3 .175 SMTK-1010-JR S2TK-1010-JR 100/JAR
10 1-1/4” 12 5/16” #3 .175 SMTK-1012-JR S2TK-1012-JR 100/JAR
10 1-1/2” 12 5/16” #3 .175 SMTK-1015-JR S2TK-1015-JR 100/JAR
10 2” 12 5/16” #3 .175 SMTK-1020-JR S2TK-1020-JR 100/JAR
12 1/2” 11 5/16” #3 .210 SMTK-1205-JR S2TK-1205-JR 100/JAR
12 3/4” 11 5/16” #3 .210 SMTK-1207-JR S2TK-1207-JR 100/JAR
12 1” 11 5/16” #3 .210 SMTK-1210-JR S2TK-1210-JR 100/JAR
12 1-1/4” 11 5/16” #3 .210 SMTK-1212-JR S2TK-1212-JR 100/JAR
12 1-1/2” 11 5/16” #3 .210 SMTK-1215-JR S2TK-1215-JR 100/JAR
12 2” 11 5/16” #3 .210 SMTK-1220-JR S2TK-1220-JR 100/JAR
14 3/4” 10 3/8” #3 .250 SMTK-1407-JR S2TK-1407-JR 100/JAR
14 1” 10 3/8” #3 .250 SMTK-1410-JR S2TK-1410-JR 100/JAR
14 1-1/2” 10 3/8” #3 .250 SMTK-1415-JR S2TK-1415-JR 100/JAR
14 2” 10 3/8” #3 .250 SMTK-1420-JR S2TK-1420-JR 100/JAR

HEX WASHER HEAD #4 - #5 POINT

Self-Drilling Screws eliminate the need for a pre-drilled hole. Longer drill fl utes allow for use with thicker
steel up to 1/2” (excluding #4 Pt). Ceramic zinc coa ng provides up to 1000 hour salt spray protec on.

SCREW OVERALL THREAD THREAD DRILL MAX HEX STEEL DACRO PKG
SIZE LENGTH LENGTH PITCH POINT THICKNESS SIZE HEX WASHER HD
12 7/8” 7/16” 24 #4 .250 5/16” SMTK-1287-4-JR 100/JAR
12 1-1/4” 5/8” 24 #5 .500 5/16” SMTK-1212-5-JR 100/JAR
12 1-1/2” 7/8” 24 #5 .500 5/16” SMTK-1215-5-JR 100/JAR
12 2” 1-3/8” 24 #5 .500 5/16” SMTK-1220-5-JR 100/JAR
