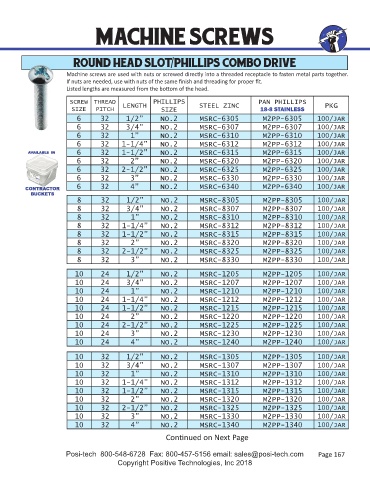

Page 167 - Catalog 26 2019

P. 167

MACHINE SCREWS

ROUND HEAD SLOT/PHILLIPS COMBO DRIVE

Machine screws are used with nuts or screwed directly into a threaded receptacle to fasten metal parts together.
If nuts are needed, use with nuts of the same ﬁ nish and threading for proper ﬁ t.
Listed lengths are measured from the bo om of the head.
SCREW THREAD LENGTH PHILLIPS STEEL ZINC PAN PHILLIPS PKG
SIZE PITCH SIZE 18-8 STAINLESS
6 32 1/2” NO.2 MSRC-6305 M2PP-6305 100/JAR
6 32 3/4” NO.2 MSRC-6307 M2PP-6307 100/JAR
6 32 1” NO.2 MSRC-6310 M2PP-6310 100/JAR
6 32 1-1/4” NO.2 MSRC-6312 M2PP-6312 100/JAR
6 32 1-1/2” NO.2 MSRC-6315 M2PP-6315 100/JAR
6 32 2” NO.2 MSRC-6320 M2PP-6320 100/JAR
6 32 2-1/2” NO.2 MSRC-6325 M2PP-6325 100/JAR
6 32 3” NO.2 MSRC-6330 M2PP-6330 100/JAR
6 32 4” NO.2 MSRC-6340 M2PP-6340 100/JAR

8 32 1/2” NO.2 MSRC-8305 M2PP-8305 100/JAR
8 32 3/4” NO.2 MSRC-8307 M2PP-8307 100/JAR
8 32 1” NO.2 MSRC-8310 M2PP-8310 100/JAR
8 32 1-1/4” NO.2 MSRC-8312 M2PP-8312 100/JAR
8 32 1-1/2” NO.2 MSRC-8315 M2PP-8315 100/JAR
8 32 2” NO.2 MSRC-8320 M2PP-8320 100/JAR
8 32 2-1/2” NO.2 MSRC-8325 M2PP-8325 100/JAR
8 32 3” NO.2 MSRC-8330 M2PP-8330 100/JAR

10 24 1/2” NO.2 MSRC-1205 M2PP-1205 100/JAR
10 24 3/4” NO.2 MSRC-1207 M2PP-1207 100/JAR
10 24 1” NO.2 MSRC-1210 M2PP-1210 100/JAR
10 24 1-1/4” NO.2 MSRC-1212 M2PP-1212 100/JAR
10 24 1-1/2” NO.2 MSRC-1215 M2PP-1215 100/JAR
10 24 2” NO.2 MSRC-1220 M2PP-1220 100/JAR
10 24 2-1/2” NO.2 MSRC-1225 M2PP-1225 100/JAR
10 24 3” NO.2 MSRC-1230 M2PP-1230 100/JAR
10 24 4” NO.2 MSRC-1240 M2PP-1240 100/JAR

10 32 1/2” NO.2 MSRC-1305 M2PP-1305 100/JAR
10 32 3/4” NO.2 MSRC-1307 M2PP-1307 100/JAR
10 32 1” NO.2 MSRC-1310 M2PP-1310 100/JAR
10 32 1-1/4” NO.2 MSRC-1312 M2PP-1312 100/JAR
10 32 1-1/2” NO.2 MSRC-1315 M2PP-1315 100/JAR
10 32 2” NO.2 MSRC-1320 M2PP-1320 100/JAR
10 32 2-1/2” NO.2 MSRC-1325 M2PP-1325 100/JAR
10 32 3” NO.2 MSRC-1330 M2PP-1330 100/JAR
10 32 4” NO.2 MSRC-1340 M2PP-1340 100/JAR

Con nued on Next Page
