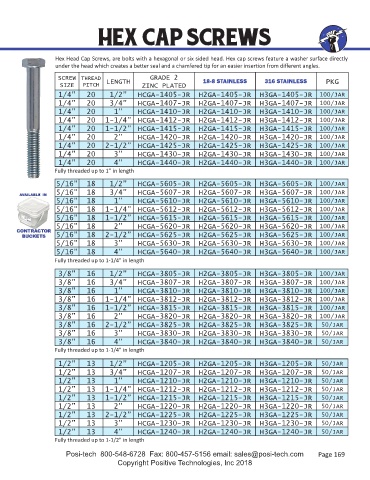

Page 169 - Catalog 26 2019

HEX CAP SCREWS

Hex Head Cap Screws, are bolts with a hexagonal or six sided head. Hex cap screws feature a washer surface directly
under the head which creates a be er seal and a chamfered p for an easier inser on from diff erent angles.

SCREW THREAD LENGTH GRADE 2 18-8 STAINLESS 316 STAINLESS PKG
SIZE PITCH ZINC PLATED
1/4” 20 1/2” HCGA-1405-JR H2GA-1405-JR H3GA-1405-JR 100/JAR
1/4” 20 3/4” HCGA-1407-JR H2GA-1407-JR H3GA-1407-JR 100/JAR
1/4” 20 1” HCGA-1410-JR H2GA-1410-JR H3GA-1410-JR 100/JAR
1/4” 20 1-1/4” HCGA-1412-JR H2GA-1412-JR H3GA-1412-JR 100/JAR
1/4” 20 1-1/2” HCGA-1415-JR H2GA-1415-JR H3GA-1415-JR 100/JAR
1/4” 20 2” HCGA-1420-JR H2GA-1420-JR H3GA-1420-JR 100/JAR
1/4” 20 2-1/2” HCGA-1425-JR H2GA-1425-JR H3GA-1425-JR 100/JAR
1/4” 20 3” HCGA-1430-JR H2GA-1430-JR H3GA-1430-JR 100/JAR
1/4” 20 4” HCGA-1440-JR H2GA-1440-JR H3GA-1440-JR 100/JAR
Fully threaded up to 1” in length
5/16” 18 1/2” HCGA-5605-JR H2GA-5605-JR H3GA-5605-JR 100/JAR
5/16” 18 3/4” HCGA-5607-JR H2GA-5607-JR H3GA-5607-JR 100/JAR
5/16” 18 1” HCGA-5610-JR H2GA-5610-JR H3GA-5610-JR 100/JAR
5/16” 18 1-1/4” HCGA-5612-JR H2GA-5612-JR H3GA-5612-JR 100/JAR
5/16” 18 1-1/2” HCGA-5615-JR H2GA-5615-JR H3GA-5615-JR 100/JAR
5/16” 18 2” HCGA-5620-JR H2GA-5620-JR H3GA-5620-JR 100/JAR
5/16” 18 2-1/2” HCGA-5625-JR H2GA-5625-JR H3GA-5625-JR 100/JAR
5/16” 18 3” HCGA-5630-JR H2GA-5630-JR H3GA-5630-JR 100/JAR
5/16” 18 4” HCGA-5640-JR H2GA-5640-JR H3GA-5640-JR 100/JAR
Fully threaded up to 1-1/4” in length

3/8” 16 1/2” HCGA-3805-JR H2GA-3805-JR H3GA-3805-JR 100/JAR
3/8” 16 3/4” HCGA-3807-JR H2GA-3807-JR H3GA-3807-JR 100/JAR
3/8” 16 1” HCGA-3810-JR H2GA-3810-JR H3GA-3810-JR 100/JAR
3/8” 16 1-1/4” HCGA-3812-JR H2GA-3812-JR H3GA-3812-JR 100/JAR
3/8” 16 1-1/2” HCGA-3815-JR H2GA-3815-JR H3GA-3815-JR 100/JAR
3/8” 16 2” HCGA-3820-JR H2GA-3820-JR H3GA-3820-JR 100/JAR
3/8” 16 2-1/2” HCGA-3825-JR H2GA-3825-JR H3GA-3825-JR 50/JAR
3/8” 16 3” HCGA-3830-JR H2GA-3830-JR H3GA-3830-JR 50/JAR
3/8” 16 4” HCGA-3840-JR H2GA-3840-JR H3GA-3840-JR 50/JAR
Fully threaded up to 1-1/4” in length
1/2” 13 1/2” HCGA-1205-JR H2GA-1205-JR H3GA-1205-JR 50/JAR
1/2” 13 3/4” HCGA-1207-JR H2GA-1207-JR H3GA-1207-JR 50/JAR
1/2” 13 1” HCGA-1210-JR H2GA-1210-JR H3GA-1210-JR 50/JAR
1/2” 13 1-1/4” HCGA-1212-JR H2GA-1212-JR H3GA-1212-JR 50/JAR
1/2” 13 1-1/2” HCGA-1215-JR H2GA-1215-JR H3GA-1215-JR 50/JAR
1/2” 13 2” HCGA-1220-JR H2GA-1220-JR H3GA-1220-JR 50/JAR
1/2” 13 2-1/2” HCGA-1225-JR H2GA-1225-JR H3GA-1225-JR 50/JAR
1/2” 13 3” HCGA-1230-JR H2GA-1230-JR H3GA-1230-JR 50/JAR
1/2” 13 4” HCGA-1240-JR H2GA-1240-JR H3GA-1240-JR 50/JAR
Fully threaded up to 1-1/2” in length

Posi-tech 800-548-6728 Fax: 800-457-5156 email: sales@posi-tech.com Page 169
Copyright Positive Technologies, Inc 2018
