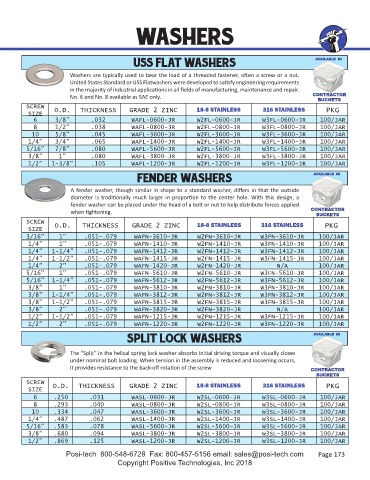

Page 173 - Catalog 26 2019

WASHERS

USS FLAT WASHERS

Washers are typically used to bear the load of a threaded fastener, o en a screw or a nut.
United States Standard or USS Flatwashers were developed to sa sfy engineering requirements
in the majority of industrial applica ons in all fi elds of manufacturing, maintenance and repair.
No. 6 and No. 8 available as SAE only.
SCREW O.D. THICKNESS GRADE 2 ZINC 18-8 STAINLESS 316 STAINLESS PKG
SIZE
6 3/8” .032 WAFL-0600-JR W2FL-0600-JR W3FL-0600-JR 100/JAR
8 1/2” .038 WAFL-0800-JR W2FL-0800-JR W3FL-0800-JR 100/JAR
10 5/8” .045 WAFL-3600-JR W2FL-3600-JR W3FL-3600-JR 100/JAR
1/4” 3/4” .065 WAFL-1400-JR W2FL-1400-JR W3FL-1400-JR 100/JAR
5/16” 7/8” .080 WAFL-5600-JR W2FL-5600-JR W3FL-5600-JR 100/JAR
3/8” 1” .080 WAFL-3800-JR W2FL-3800-JR W3FL-3800-JR 100/JAR
1/2” 1-3/8” .105 WAFL-1200-JR W2FL-1200-JR W3FL-1200-JR 100/JAR

FENDER WASHERS

A fender washer, though similar in shape to a standard washer, diff ers in that the outside
diameter is tradi onally much larger in propor on to the center hole. With this design, a
fender washer can be placed under the head of a bolt or nut to help distribute forces applied
when ghtening.
SCREW O.D. THICKNESS GRADE 2 ZINC 18-8 STAINLESS 316 STAINLESS PKG
SIZE
3/16” 1” .051-.079 WAFN-3610-JR W2FN-3610-JR W3FN-3610-JR 100/JAR
1/4” 1” .051-.079 WAFN-1410-JR W2FN-1410-JR W3FN-1410-JR 100/JAR
1/4” 1-1/4” .051-.079 WAFN-1412-JR W2FN-1412-JR W3FN-1412-JR 100/JAR
1/4” 1-1/2” .051-.079 WAFN-1415-JR W2FN-1415-JR W3FN-1415-JR 100/JAR
1/4” 2” .051-.079 WAFN-1420-JR W2FN-1420-JR N/A 100/JAR
5/16” 1” .051-.079 WAFN-5610-JR W2FN-5610-JR W3FN-5610-JR 100/JAR
5/16” 1-1/4” .051-.079 WAFN-5612-JR W2FN-5612-JR W3FN-5612-JR 100/JAR
3/8” 1” .051-.079 WAFN-3810-JR W2FN-3810-JR W3FN-3810-JR 100/JAR
3/8” 1-1/4” .051-.079 WAFN-3812-JR W2FN-3812-JR W3FN-3812-JR 100/JAR
3/8” 1-1/2” .051-.079 WAFN-3815-JR W2FN-3815-JR W3FN-3815-JR 100/JAR
3/8” 2” .051-.079 WAFN-3820-JR W2FN-3820-JR N/A 100/JAR
1/2” 1-1/2” .051-.079 WAFN-1215-JR W2FN-1215-JR W3FN-1215-JR 100/JAR
1/2” 2” .051-.079 WAFN-1220-JR W2FN-1220-JR W3FN-1220-JR 100/JAR

SPLIT LOCK WASHERS

The “Split” in the helical spring lock washer absorbs ini al driving torque and visually closes
under nominal bolt loading. When tension in the assembly is reduced and loosening occurs,
it provides resistance to the back-off rota on of the screw

SCREW O.D. THICKNESS GRADE 2 ZINC 18-8 STAINLESS 316 STAINLESS PKG
SIZE
6 .250 .031 WASL-0600-JR W2SL-0600-JR W3SL-0600-JR 100/JAR
8 .293 .040 WASL-0800-JR W2SL-0800-JR W3SL-0800-JR 100/JAR
10 .334 .047 WASL-3600-JR W2SL-3600-JR W3SL-3600-JR 100/JAR
1/4” .487 .062 WASL-1400-JR W2SL-1400-JR W3SL-1400-JR 100/JAR
5/16” .583 .078 WASL-5600-JR W2SL-5600-JR W3SL-5600-JR 100/JAR
3/8” .680 .094 WASL-3800-JR W2SL-3800-JR W3SL-3800-JR 100/JAR
1/2” .869 .125 WASL-1200-JR W2SL-1200-JR W3SL-1200-JR 100/JAR
