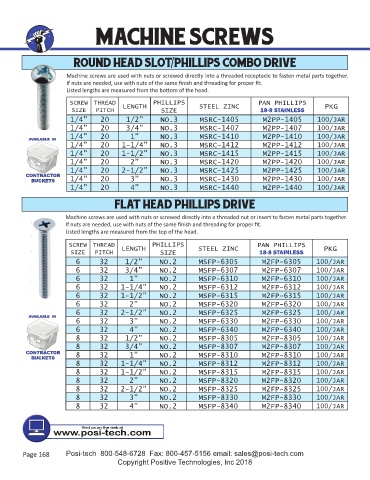

Page 168 - Catalog 26 2019
P. 168

MACHINE SCREWS




                         ROUND HEAD SLOT/PHILLIPS COMBO DRIVE

                       Machine screws are used with nuts or screwed directly into a threaded receptacle to fasten metal parts together.
                       If nuts are needed, use with nuts of the same fi nish and threading for proper fi t.
                       Listed lengths are measured from the bo  om of the head.

                        SCREW THREAD      LENGTH    PHILLIPS       STEEL ZINC         PAN PHILLIPS          PKG
                         SIZE    PITCH                SIZE                             18-8 STAINLESS
                        1/4”      20       1/2”       NO.3         MSRC-1405            M2PP-1405         100/JAR
                        1/4”      20       3/4”       NO.3         MSRC-1407            M2PP-1407         100/JAR
                        1/4”      20        1”        NO.3         MSRC-1410            M2PP-1410         100/JAR
                        1/4”      20     1-1/4”       NO.3         MSRC-1412            M2PP-1412         100/JAR
                        1/4”      20     1-1/2”       NO.3         MSRC-1415            M2PP-1415         100/JAR
                        1/4”      20        2”        NO.3         MSRC-1420            M2PP-1420         100/JAR
                        1/4”      20     2-1/2”       NO.3         MSRC-1425            M2PP-1425         100/JAR
                        1/4”      20        3”        NO.3         MSRC-1430            M2PP-1430         100/JAR
                        1/4”      20        4”        NO.3         MSRC-1440            M2PP-1440         100/JAR

                                       FLAT HEAD PHILLIPS DRIVE

                       Machine screws are used with nuts or screwed directly into a threaded nut or insert to fasten metal parts together.
                       If nuts are needed, use with nuts of the same fi nish and threading for proper fi t.
                       Listed lengths are measured from the top of the head.

                        SCREW THREAD     LENGTH    PHILLIPS        STEEL ZINC         PAN PHILLIPS          PKG
                        SIZE    PITCH                 SIZE                             18-8 STAINLESS
                          6       32      1/2”        NO.2         MSFP-6305            M2FP-6305         100/JAR
                          6       32      3/4”        NO.2         MSFP-6307            M2FP-6307         100/JAR
                          6       32        1”        NO.2         MSFP-6310            M2FP-6310         100/JAR
                          6       32     1-1/4”       NO.2         MSFP-6312            M2FP-6312         100/JAR
                          6       32     1-1/2”       NO.2         MSFP-6315            M2FP-6315         100/JAR
                          6       32        2”        NO.2         MSFP-6320            M2FP-6320         100/JAR
                          6       32     2-1/2”       NO.2         MSFP-6325            M2FP-6325         100/JAR
                          6       32        3”        NO.2         MSFP-6330            M2FP-6330         100/JAR
                          6       32        4”        NO.2         MSFP-6340            M2FP-6340         100/JAR
                          8       32      1/2”        NO.2         MSFP-8305            M2FP-8305         100/JAR
                          8       32      3/4”        NO.2         MSFP-8307            M2FP-8307         100/JAR
                          8       32        1”        NO.2         MSFP-8310            M2FP-8310         100/JAR
                          8       32     1-1/4”       NO.2         MSFP-8312            M2FP-8312         100/JAR
                          8       32     1-1/2”       NO.2         MSFP-8315            M2FP-8315         100/JAR
                          8       32        2”        NO.2         MSFP-8320            M2FP-8320         100/JAR
                          8       32     2-1/2”       NO.2         MSFP-8325            M2FP-8325         100/JAR
                          8       32        3”        NO.2         MSFP-8330            M2FP-8330         100/JAR
                          8       32        4”        NO.2         MSFP-8340            M2FP-8340         100/JAR
